Product Details:
|
Product Name: | Stainless Steel Rope Mesh | Surface Treatment: | Non, Black Oxidation |
---|---|---|---|
Aperture: | 20*20mm 30*30mm 50*50mm 80*80mm 100*100mm Customized | Width: | 0.5m-2.5m |
Edge Type: | Knotted, | Size: | 1*2m, 1.5*3m,1.22*2.44m, Can Be Customized To Any Size And Shape. |
Material: | Stainless Steel Wire 304/316 | Wire Diameter: | 1mm-3mm |
Highlight: | 20x20mm stainless steel rope wire mesh,versatile stainless steel rope wire mesh,ss 304 steel cable mesh |
Attribute | Value |
---|---|
Product Name | Stainless Steel Rope Mesh |
Surface Treatment | Non, Black Oxidation |
Aperture | 20*20mm, 30*30mm, 50*50mm, 80*80mm, 100*100mm (Customized) |
Width | 0.5m-2.5m |
Edge Type | Knotted |
Size | 1*2m, 1.5*3m, 1.22*2.44m (Customizable to any size and shape) |
Material | Stainless Steel Wire 304/316 |
Wire Diameter | 1mm-3mm |

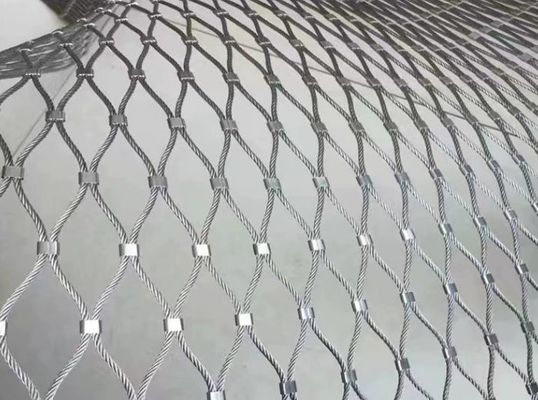

Stainless steel rope mesh is a versatile material suitable for zoo mesh, aviary mesh, decorative applications, and various railing systems including stair railings, balustrades, guardrails, and bridge railings. Its high strength provides excellent safety by preventing falls while maintaining visibility.

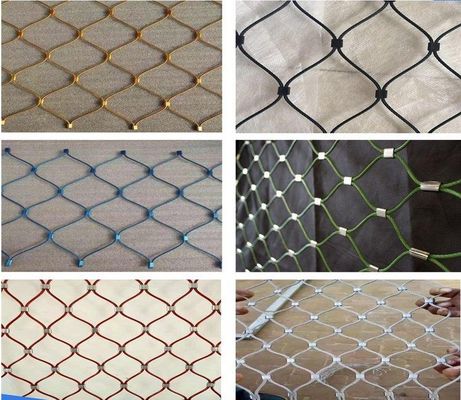

The material offers exceptional durability and flexibility, made from high-quality stainless steel wire rope with superior corrosion and UV resistance for long-lasting performance in harsh environments. Available in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps, these styles are favored by architects for their aesthetic appeal.
Model | Steel Wire Mesh Structure | Breaking Force (KN) | Wire Rope Diameter (mm) | Mesh Size (mm) |
---|---|---|---|---|
BN32120 | 7*19 | 7.38 | 3.2 | 120*208 |
BN2470 | 7*7 | 4.18 | 2.4 | 70*102 |
BN20100 | 7*7 | 3.17 | 2.0 | 100*173 |
BN1680 | 7*7 | 2.17 | 1.6 | 80*140 |

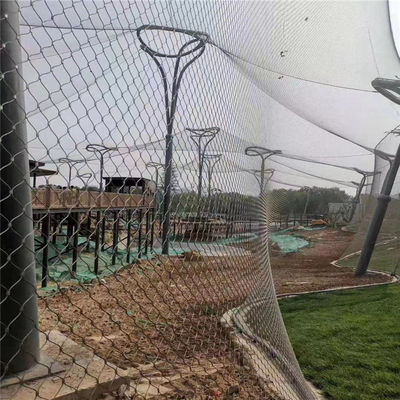

This versatile product serves multiple purposes including zoo fencing, aviary mesh, decorative applications, various railing systems, protective walls, animal cages, landscape protection, park adornment, stadium fencing, commercial spaces, exhibition areas, performance props, construction projects, playgrounds, metal curtain walls, and both indoor/outdoor decoration and protection engineering.
The stainless steel rope wire mesh is packaged in plastic-wrapped coils, secured in wooden or cardboard boxes to prevent damage during transit. Boxes are sealed against moisture and contaminants, then palletized in wooden crates for efficient transportation.
