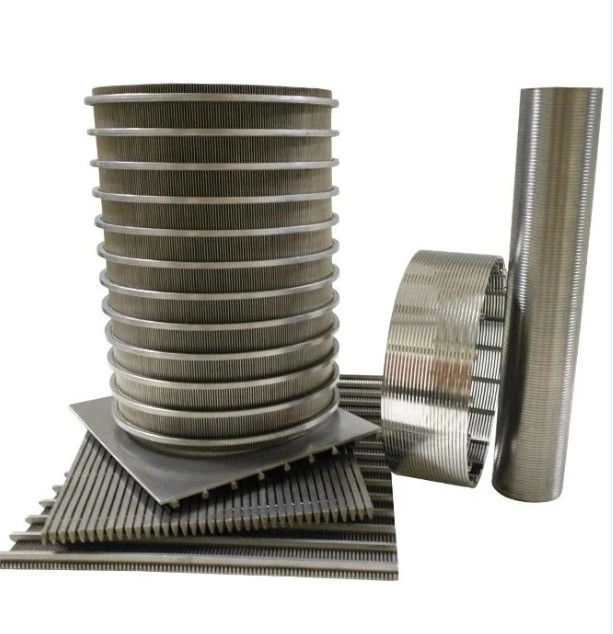

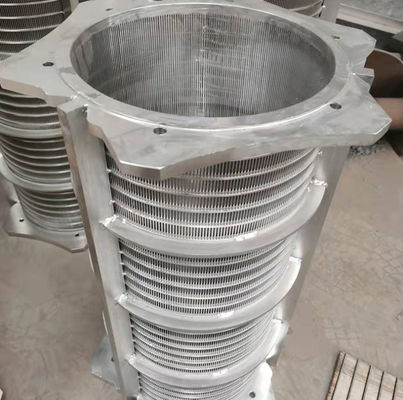

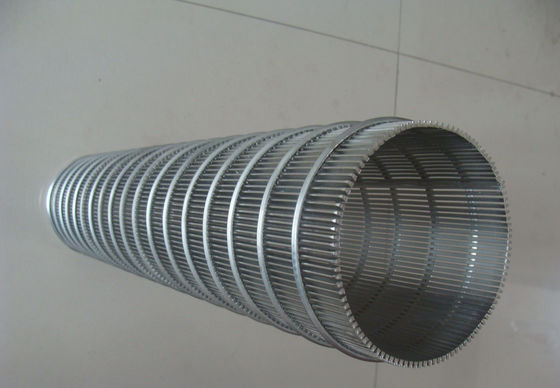

SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe

SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe
SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe
SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe

Large Image :  SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe

Product Details:
Place of Origin: Hebei Province China
Brand Name: VELP
Certification: SGS,BV ISO
Model Number: wedge wire screen 002
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: USD10-USD20/SQM
Packaging Details: Iorn Pallet+safety belts or wooden box
Delivery Time: 10-15days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000sqm/day
Contact Now

SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe

Description
Name: SS 304 Flat Wedge Wire Slot Screen Pressure Screen Water Well Casing Pipe Material: Stainless Steel 304/316
Wedge Wire: Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm Support Rod: Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm
Support Profile: Flat,triangle Wire,round Wire,trapezoid Wire Size: Can Be Customized
Keywords: Long Service Life
Highlight:

long service life wedge wire screens

,

wedge wire screens ss 304

,

ss 304 johnson v wire screen

SS 304 Flat Wedge Wire Slot Screen Pressure Screen Water Well Casing Pipe
Product Overview
Our wedge wire screen sieve drum features customizable slot openings with wires positioned either radially on the outside surface or axially on the inside of the screen cylinder. Also known as dehydrator filters, these screens are manufactured through precision leveling, welding, pressing, and grinding processes for optimal performance.
Key Specifications
Attribute Details
Material Stainless steel 304/316
Wedge Wire Dimensions Width: 1.5mm, 1.8mm, 2.3mm, 3.0mm, 3.3mm, 3.7mm
Height: 2.2mm, 2.5mm, 2.7mm, 3.6mm, 4.3mm, 4.7mm, 5.6mm, 6.3mm, 7.0mm
Support Rod Dimensions Width: 2.3mm, 3.0mm, 3.3mm, 3.7mm
Height: 2.7mm, 3.6mm, 4.7mm, 5.6mm, 6.3mm
Round: 2.5mm-6.0mm
Support Profile Options Flat, triangle wire, round wire, trapezoid wire
Size Customizable
Product Advantages
  • Strong solid structure with high open area
  • Precise slot dimensions for accurate filtration
  • High mechanical strength and pressure resistance
  • Easy flushing and regeneration capabilities
  • No dead spots for particle accumulation
  • Excellent backwashing effect with gathered energy
  • Durable construction with long service life
  • High screening efficiency
  • Easy to disassemble and clean
Applications
Our wedge wire screens are ideal for:
  • Architecture and construction
  • Food and beverage processing
  • Refining and petrochemical industries
  • Waste water treatment systems
  • Water well and oil well applications
  • Coal and mining operations
  • Chemical processing
  • Pharmaceutical manufacturing
  • Metallurgical processes
  • Environmental protection systems
Frequently Asked Questions
Q: Can I get free samples?
A: Yes, we provide free samples upon request.
Q: What materials are used in your products?
A: We use high-quality stainless steel (304/316) for all our wedge wire screens.
Q: Do you have quality control measures?
A: Yes, all production lines undergo strict quality control procedures.
Q: What are your payment terms?
A: We require 30% deposit via T/T, with 70% balance before delivery. We provide product videos before final payment.
Q: What is your typical delivery time?
A: Standard delivery is 15 days after receiving deposit, varying by order specifics.
SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe 0 SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe 1 SS 304 Flat Wedge Wire Screen for Water Well Casing Pipe 2
