Product Details:
|
| Name: | Centrifuge Screen Basket Wedge Wire Johnson Filter Screen | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Wedge Wire: | Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm | Support Rod: | Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm |
| Support Profile: | Flat,triangle Wire,round Wire,trapezoid Wire | Size: | Can Be Customized |
| Keywords: | High Opening Rating | ||
| High Light: | centrifuge johnson filter screen,wedge wire johnson filter screen,centrifuge wedge wire screen filter |
||

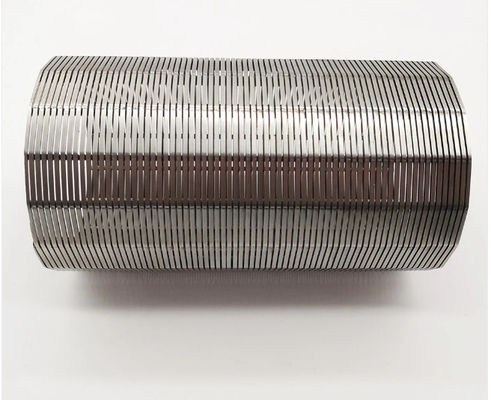

Centrifuge Screen Basket Wedge Wire Johnson Filter Screen
Product Information
wedge wire screen products are available in a wide range of apertures and profiles. They can suit different machines and can be used in various applications.The v wire wrapped wedge Johnson screens can be mechanically and electropolished, and given additional surface hardening treatments.
Wedge screen mesh is an indispensable device for conveying media piping, usually use installed in pressure reducing valves, pressure relief valves, water supply valves, square filters and other equipment. Filter is composed of the cylinder, stainless steel filter, sewage section, transmission and electrical control part. After water to be treated passes through the filter cartridge of the filter net, the impurities are blocked. When cleaning is required, the removable filter cartridge can be removed and reloaded again. Therefore, the maintenance is extremely convenient.
Parameter
| Material | stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Slot Opening | 0.02-5mm |
| Size | can be customized |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
Advantage

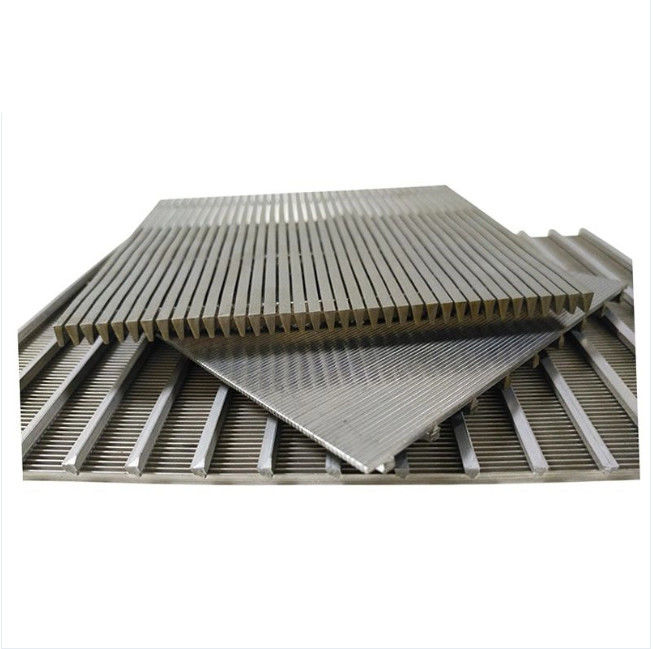

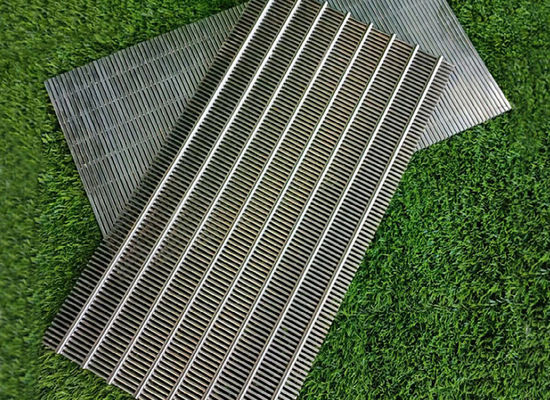

The wedge mesh filter(Johnson pipe) are made of metal wedge wire with Rolling and welding technology, which has the advantages of high mechanical strength, high pressure resistant, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The backwashing energy can be gathered when flushing, and the backwashing effect is good.
Application
widely used in mining, coal, petroleum, metallurgy, fertilizer, grain, chemical industry, food industry, starch processing, sugar processing, wastewater management, sludge dewatering, stone and quarry industry.
Serves
1.Fast feedback and complete solution
2.Competive price and better delivery time
3.Free samples made in 2 days
4.Complete order system
5.Excellent after sale service
