Product Details:
|
| Name: | Sieve Cylinders Wedge Filter Screen Looped Wedge Wire Screen Used In Well Drilling | Type: | Wedge Wire Screen |
|---|---|---|---|
| Mtaerial: | SS304 SS316 | Wedge Wire: | 0.5*1.5, 1*2, 2*3, Etc |
| Size: | Square, Round, Flat Sheet, | Support Rod Size: | 1.5*2.5, 1.8*2.5, 2*3, 2*4, 3*5 |
| Transport Package: | Iron Pallet+safety Belts | Design: | Flat, Bend |
| High Light: | looped wedge filter screen,well drilling wedge filter screen,well drilling wedge wire screen filter |
||

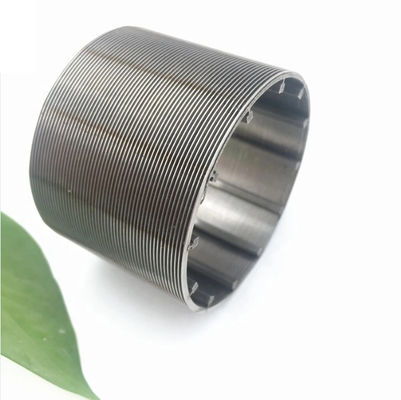

The wedge-shaped tube is made during the process of simultaneously winding a specially formed working line on a spiral and welding them to a load line placed along the tube.
This technology allows the production of wedge screens when very high gap precision and shielding resistance are required.
Thanks to the latest welding technology, we are able to obtain a wide range of distances between the load-bearing lines, with very precise and repeatable clearances, so that the screen can be produced according to the customer's specific requirements.
| Item | Size(mm) |
| Wedge wire | 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5 |
| Support rod | 1.5x2.5 1.8x2.5 2x3 2x4 3x5 3x6 3x10 4x7 5x6 5x8 |
| Slot | 20 micron to 3000 micron,tolerance +-5 micron |
Wedge Wire Screen Diameter
Screen diameters range from 0.750" to 38" and up in fabricated sections. Your specific tolerance and size requirements will be adhered to and will meet the required industry standards.
Carbon Retention
Catalyst Retention
Center Pipes
Collectors
De-Watering
Distributors
Filter Elements
Filter Leaf Chambers
Filter Support Cores
Flow Distribution
Intake Screens
Outlet Baskets
Reactor Screens
Resin Traps
Trap Filters
Underdrains
- Extended lifetime
- Slot during abrasive operation on the screen surface does not change
- Capability to withstand heavy loads
- High open area
- Less prone to clogging
- Perfectly smooth and flat surface
- High precision of execution Increased capacity and more precise separation
- Self-cleaning effect
- Low pressure loss
- Increased efficiency
- Permanence of exploited resources
- Lower capital cost and maintenance
1. Smooth surface ,small slot sizes, accurate efficiency.
2. Stainless steel material corrosion, rust, chemical resistance, make wedge wire screen durable and long lifespan.
Wedge wire screen mainly used for liquid, particles and powder filtering,
such as: Chemical industrial, pulp and paper industrial, mining industrial, brewing industrial, sewage instrument, oil and gas industrial, etc.
1. Plywood case + safety belts + pvc films
2. carbon steel pallet + safety belts + pvc films
By air
By sea
By express
