Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining

Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining
Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining
Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining

Large Image :  Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining

Product Details:
Place of Origin: Hebei Province China
Brand Name: VELP
Certification: SGS,BV ISO
Model Number: wedge wire screen 006
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: USD10-USD20/SQM
Packaging Details: Iorn Pallet+safety belts or wooden box
Delivery Time: 10-15days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000sqm/day
Contact Now

Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining

Description
Name: Stainless Steel Johnson Type Wedge Wire Screen For Mining Industry Material: Stainless Steel 304/316
Wedge Wire: Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm Support Rod: Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm
Support Profile: Flat,triangle Wire,round Wire,trapezoid Wire Size: Can Be Customized
Keywords: Alkali-resisting
Highlight:

johnson type wedge wire screen panel

,

mining industry wedge wire screen panel

,

mining industry wedge screen

Stainless Steel Wedge Wire Screen Panel Johnson Type For Mining Industry
Product Attributes
Attribute Value
Name Stainless Steel Johnson Type Wedge Wire Screen for Mining Industry
Material Stainless steel 304/316
Wedge wire Width: 1.5mm, 1.8mm, 2.3mm etc. Height: 2.2mm, 2.5mm, 2.7mm
Support rod Width: 2.3mm, 3.0mm, 3.3mm Height: 2.7mm, 3.6mm, 4.7mm
Support profile Flat, triangle wire, round wire, trapezoid wire
Size Can be customized
Keywords Alkali-resisting
Product Description
Wedge wire filter, also called wedge wire strainer or wedge screen filter, is composed of wedge wires and support bars. Our durable design resists deformation for extended service life, thanks to mature wedge wire filter processing technology.
Key Features
  • Profile wires typically wedge or triangle wire with various support bar options
  • Inwardly expanding V-shaped groove minimizes solid particle clogging
  • Manufactured using rolling and welding technology for superior strength
  • High mechanical strength and pressure resistance
  • Easy flushing and regeneration capabilities
  • Nearly two-dimensional filter design eliminates particle accumulation dead spots
  • Optimized wedge-shaped gap enhances backwashing effectiveness
Technical Parameters
Parameter Specifications
Material Stainless steel 304/316
Wedge wire Width: 1.5mm-3.7mm | Height: 2.2mm-7.0mm
Support rod Width: 2.3mm-3.7mm | Height: 2.7mm-6.3mm | Round: 2.5mm-6.0mm
Support profile Flat, triangle wire, round wire, trapezoid wire
Size Customizable
Characteristics Strong solid structure, high open area, accurate slot dimensions
End Finishing Thread fitting, flange, closed plated, resistance welded closed plate, metal ring, etc.
Product Advantages
  • High mechanical strength capable of withstanding significant pressures
  • Uniform filter gaps promote consistent filter cake formation for better backwash regeneration
  • Wedge-shaped filter gaps enhance backwash regeneration efficiency
  • Excellent resistance to pressure, temperature variations, aging, and corrosion
  • Suitable for filtering various fluid types
Applications
Widely used in mining, coal, petroleum, metallurgy, fertilizer, grain processing, chemical industry, food processing, starch processing, sugar processing, wastewater management, sludge dewatering, and stone/quarry industries.
Packaging Options
  • Small quantities shipped by courier
  • Large quantities shipped by air or sea
  • Tracking number provided after shipment
  • Free delivery to your China-based forwarder available
Frequently Asked Questions
Q: Can I get free samples?
A: Yes, we provide free samples upon request.
Q: What materials are used in your products?
A: We use stainless steel for all our products.
Q: Do you have quality control measures?
A: Yes, all production lines have comprehensive quality control.
Q: What are your payment terms?
A: 30% deposit via T/T, with 70% balance paid before delivery. We provide product and packaging videos before final payment.
Q: What is your typical delivery time?
A: Generally 15 days after receiving advance payment. Exact timing depends on product type and order quantity.

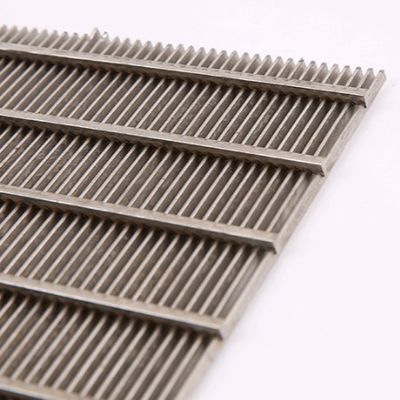

Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining 0

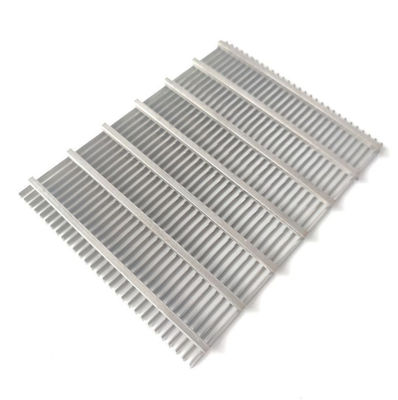

Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining 1

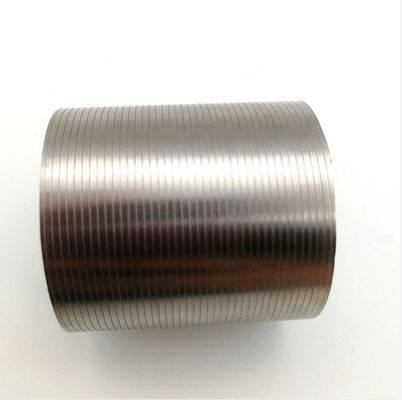

Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining 2
Stainless Steel 304/316 Johnson Wedge Wire Screen for Mining 3
