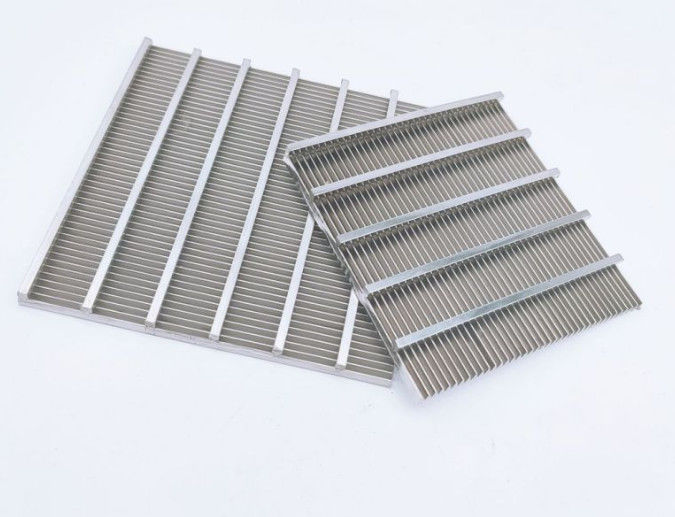

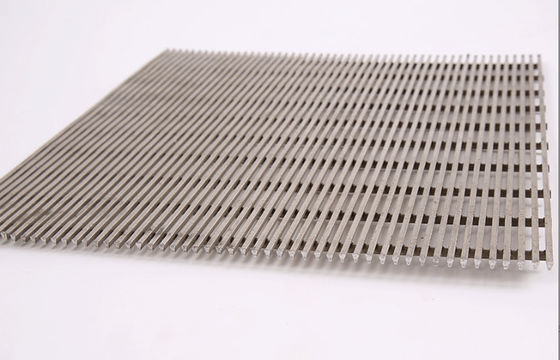

0.2mm SS304 Wedge Wire Screen Flat Panel Customized

Wedge wire screen, also named Johnson screen, wedge wire flat screens, or wedge wire panels, are manufactured with surface profiles and support profiles. The wedge wire is welded onto support rods at each intersection in a 90-degree configuration.

Our wedge wire screens are manufactured by resistance welding V-shaped wire on support rods, beginning with the highest quality raw wire. The screens are then cut, shaped, fabricated, and cleaned to meet precise specifications.

Wedge wire can be ordered as raw screen material or fabricated to a finished product to suit your application requirements. The precise control over slot specifications allows for highly accurate flow distribution and effective media, debris, and sediment filtration.

Screen diameters range from 0.750" to 38" and up in fabricated sections. All products meet required industry standards for tolerance and size requirements.

Available materials: Stainless steel 304, 316, 316L, etc.

Production process: Wedge wire profiling and welding, cutting and fitting welding, surface treatment, certification, and packaging.

• Extended lifetime
• Slot dimensions remain unchanged during abrasive operations
• Capability to withstand heavy loads
• High open area
• Less prone to clogging
• Perfectly smooth and flat surface
• High precision of execution
• Increased capacity and more precise separation
• Self-cleaning effect
• Low pressure loss
• Increased efficiency
• Permanence of exploited resources
• Lower capital cost and maintenance

• Plywood case + safety belts + PVC films
• Carbon steel pallet + safety belts + PVC films

• By air: 2-3 days
• By sea: Approximately 35 days
• By express: 3-7 days
