G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh

G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh
G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh
G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh

Large Image :  G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh

Product Details:
Place of Origin: China
Brand Name: VELP
Certification: SGS
Model Number: stucco 01
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: USD1-USD2/PCS
Packaging Details: iron pallet + safety belt+ plastic films
Delivery Time: 5-15 workdays
Payment Terms: L/C, T/T
Supply Ability: 100000 Piece/Pieces per Month

G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh

Description
Features: High Strength, Corrosion Resistance, Easy To Install Product Name: G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh
Galvanized: G60 Product Application: Building Construction
Sample: Available Tensile Strength: 350-550N/mm2
Zine Coted: ASTM:G30 G60 G90 Usage: Reinforcement For Stucco Walls, Plastering, And Other Construction Projects
Oem/Odm: Available Use: Wall,ceilings,beam And Columns.
Highlight:

Metal Lath Stucco Wire Mesh

,

G90 Stucco Wire Mesh

,

American Standard Stucco Wire Mesh

G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh



Product Description

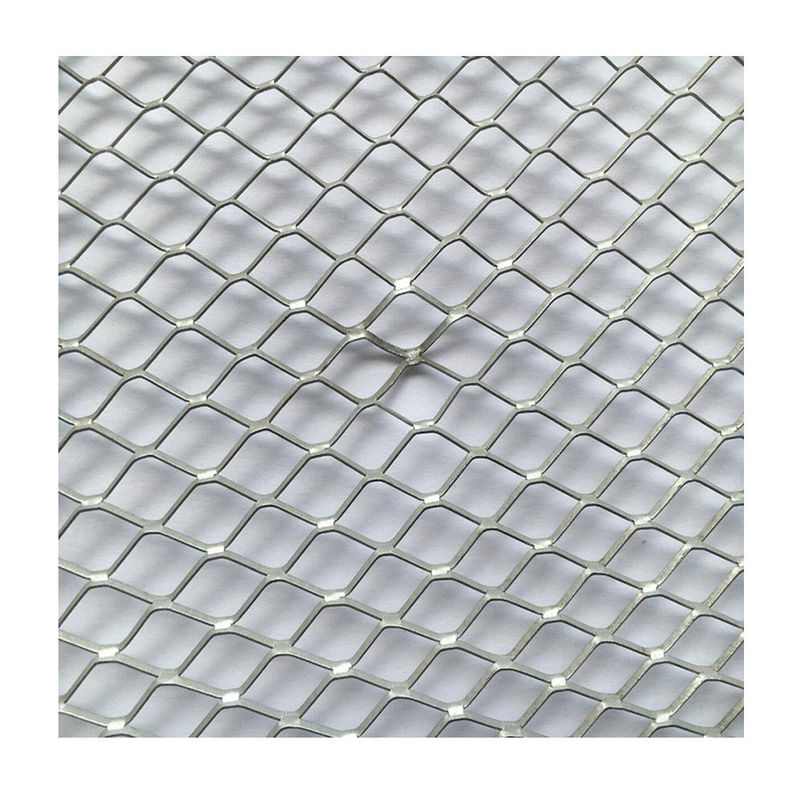

  Flat diamond metal lath is manufactured by slitting and stretching galvanized steel sheets to form small openings, thereby allowing the plaster keys to be bonded to the lath and offering better crack resistance and higher strength. Each sheet has square ends and smooth parallel edges for fast, easy handling and installation.

  Flat diamond metal lath is used as plaster base and reinforcement on almost all type of walls, ceilings, over wood or steel framing, flat or curved surfaces. The large number of openings provide better stucco bonding property.

Product Specification

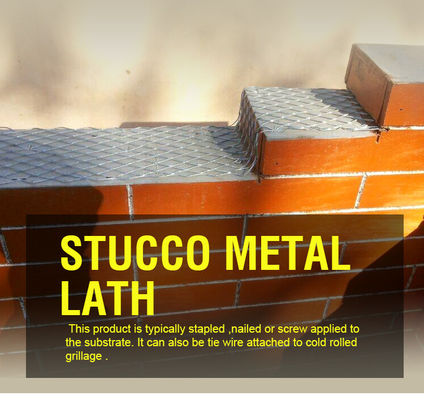

  27"*96" G90 standard diamond galvanized flat rib expanded metal lath interior exterior stucco is manufactured by slitting and stretching galvanized steel to form small opening to allow the keying of plaster.Metal lath provides a lightweight and easily attachable base for plaster application.Made from expanded steel,the lath generally is applied flat across the stud plane and attached with staples,nails or screws.The opening in the lath enable plaster to key around the metal to assure a secure bond and a flat,smooth surface of the plaster application.



1.75lbs 2.5lbs 3.4lbs expanded retaining dry walls plaster stucco galvanized mesh

Material

Galvanized sheet G30 G60 G90,Stainless steel

Type

Flat,self furring,dimples,"V" ribs

Size

27"*96"

Weight:sq/yd

1.75lbs 2.0lbs 2.5lbs 3.4lbs

Package

10 sheets/bundle,500 sheets/pallets

Other products

Angle beads,rib lath,coil mesh, diamond metal lath,expanded metal mesh,plaster bead, control joint beads

Quantity for one container

12000pcs or 10000pcs




Main use:

  Metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children's seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.



Features and benefits of expanded metal mesh:


The mesh is formed from a single piece of metal
The process is not wasteful of material
Higher strength-to-weight ratio than sheet metal
Anti-slip surface
Excludes and retains simultaneously
Premium reinforcement properties
Practical and effective screening
High efficient conductor
Super corrosion resistance

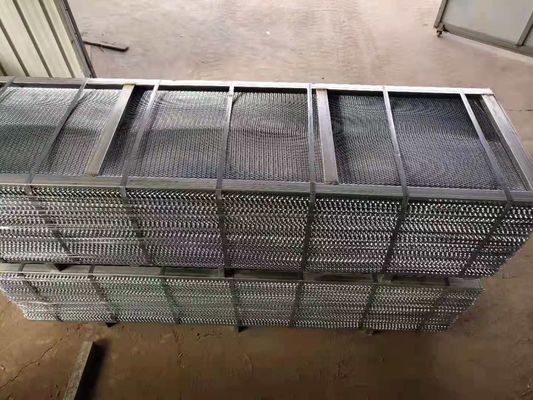

Product Package:



Material

Weight

Width

Length

Packing

G60 G90galvanized sheet

1.75lbs

27"

96"

10pcs per bundle,
50bundle per pallet

2.5lbs

27"

96'

10pcs per bundle,
50bundle per pallet

3.4lbs

27"

96"

10pcs per bundle,
50bundle per pallets

G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh 0G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh 1
G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh 2
G90 American Standard Galvanized Metal Lath Stucco Plaster Wire Mesh 3
