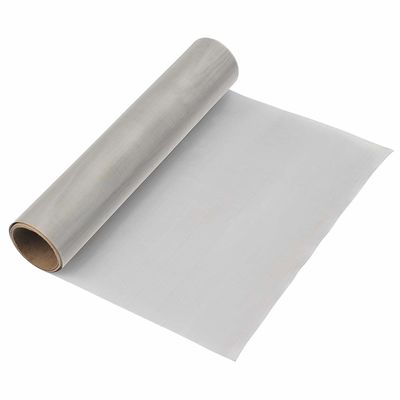

100 120 Mesh Stainless Steel Woven Wire Fine Screen Wire Mesh
Stainless Steel Wire Mesh Product Description
Stainless steel wire mesh is widely used in the field of industrial filtration, so people in the industry often call it stainless steel filter mesh. Because stainless steel materials have the characteristics of acid resistance, alkali resistance, high temperature resistance, and wear resistance, in fact, stainless steel wire mesh and stainless steel wire mesh deep-processed products have long become irreplaceable filter materials for many industrial and mining enterprises.
Our wire mesh stainless steel filters are useful in a wide range of applications requiring various openings. These stainless mesh filters can be used in conjunction with perforated metal and expanded metal. Stainless wire mesh filters are ideal for filtration used in adverse environmental conditions. As a quality wire mesh supplier, We fabricate custom-made-to-order stainless steel filters of varying sizes in single or multiple layers of woven wire mesh. The stainless-steel weaving styles that are available include plain, twill, plain dutch, and reverse dutch twill weaves. These wire mesh filters can be stamped to size, sintered, soldered, welded, and rolled to size.

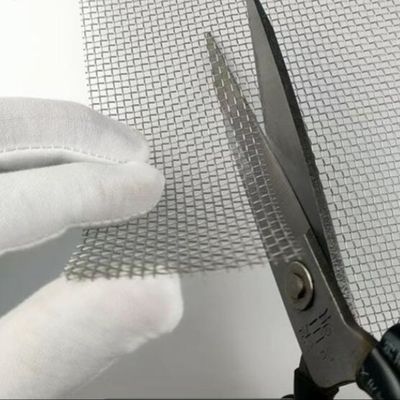

Stainless steel filters are available in many configurations. Stainless mesh is very pliable, allowing it to be worked into the custom shapes that our customers require.
Stainless Steel Wire Mesh Parameter
| Stainless steel wire mesh plain weave |
| Mesh |
Wire diameter(mm) |
Opening(mm) |
Material(AISI) |
| 7*7 |
1.0 |
2.63 |
304 or 316 |
| 10*10 |
0.6 |
1.94 |
304 or 316 |
| 12*12 |
0.5 |
1.62 |
304 or 316 |
| 16*16 |
0.4 |
1.19 |
304 or 316 |
| 18*18 |
0.35 |
1.06 |
304 or 316 |
| 20*20 |
0.35 |
0.87 |
304 or 316 |
| 24*24 |
0.26 |
0.8 |
304 or 316 |
| 30*30 |
0.3 |
0.55 |
304 or 316 |
| 35*35 |
0.17 |
0.56 |
304 or 316 |
| 40*40 |
0.23 |
0.4 |
304 or 316 |
| 50*50 |
0.2 |
0.31 |
304 or 316 |
| 60*60 |
0.15 |
0.27 |
304 or 316 |
| 70*70 |
0.12 |
0.24 |
304 or 316 |
| 80*80 |
0.13 |
0.19 |
304 or 316 |
Stainless Steel Wire Mesh Advantages
1.Corrosion Resistance: Stainless steel wire mesh is highly resistant to rust and corrosion, making it ideal for use in harsh environments, including marine, chemical, and outdoor applications.
2.Strength and Durability: It offers high tensile strength and can withstand extreme temperatures, pressure, and mechanical stress.
3.Versatility: Available in various weaves (plain, twill, Dutch, etc.) and mesh sizes, it can be customized for specific applications.
Stainless Steel Wire Mesh Application
Filtering oil Gas liquid separation
Uniform gas,well-distributed, diffuse gas or oil or heat
Filtration for high temperature environment
High pressure reverse wash filtering
Acid and alkali corrosion environment filtering
It is widely used in food, aviation, expressway railway, gardens, water conservancy project, slope protection, aquaculture, metallurgical machinery, sewage treatment and other fields.
