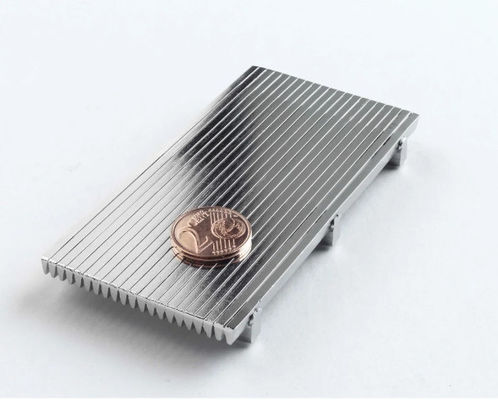

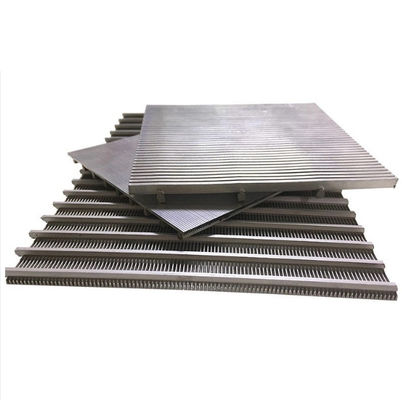

SS304/316 Johnson Wedge Wire Screen Filter Panel/ Tube Mesh
Wedge wire filter Product Information

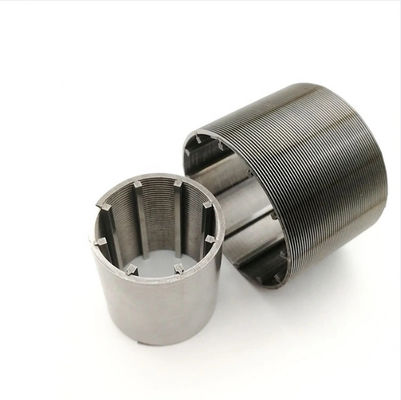

Wedge wire screen tube, also named Johnson screen tube,can be uses as wedge wire screen cylinder,wedge wire screen resin traps,Johnson screen cylinder,Johnson screen resin traps .
Wedge wire screen tube are manufactured with surface profiles and support profiles,we can call wedge wire and support rod, wedge wire is welded onto support rod at each intersection .
Wedge wire screen filter mesh made of stainless steel (304, 316, 316L).It is a robust and highly efficient filtration medium constructed from longitudinal support rods and precision-spaced V-shaped (wedge) wires, welded together to form a rigid, durable screen with precisely controlled slot openings.
Wedge wire screen tube mainly production process: wedge wire profiling and welding,cutting and other fitting welding,surface treatment,certification,package.
Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Advantage
Corrosion resistance, high and low temperature resistance, pressure resistance, good wear resistance, long use period
Usage widely used in laboratory, chemical fiber, petroleum, chemical industry, pharmacy, foodstuff, water treatment electric, power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic etc.
Application
widely used in mining, coal, petroleum, metallurgy, fertilizer, grain, chemical industry, food industry, starch processing, sugar processing, wastewater management, sludge dewatering, stone and quarry industry.
About transportation
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
