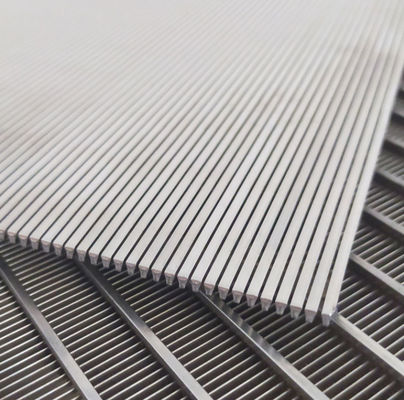

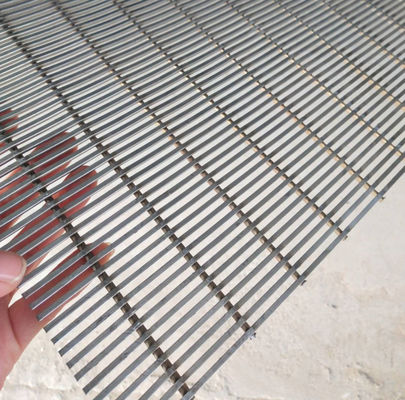

Johnson Profile Slotted Vibrating Screen Wedge Wire Flat Panel Curved Sieve
wedge wire screen Product Information

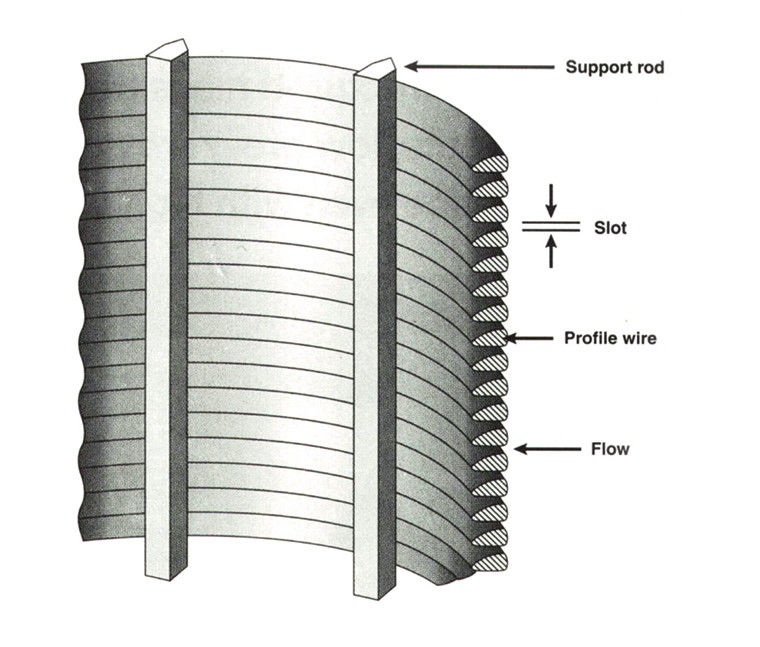

Wedge wire DSM screen, also named DSM Johnson screen ,wedge wire bend screens, sieve bend screen. Wedge wire DSM screen is consist of curved concave wedge wire screen and stainless steel frame.The wedge wire screen are manufactured with surface profiles and support profiles,we can call wedge wire and support rod, wedge wire are welded onto support rod .
DSM Sieve Bend Screen, is an advanced screening equipment with a wide range of uses, it applied in starch processing for multi-stage counter-current rinse. In starch production process, it is used to separate starch from germ and fiber, and is an important process in starch production.
The pressure arc screen is a static and efficient screening equipment. It separates and grades wet materials by pressure. Its screen surface is processed by special processing methods and is highly polished. The screen surface is smooth and even. The screen wire has a sharp edge and extremely high wear resistance. When the starch milk with a certain pressure flows quickly through the screen surface, there is no fluctuation or splashing.
wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
wedge wire screen Advantage
The wedge mesh filter(Johnson pipe) are made of metal wedge wire with Rolling and welding technology, which has the advantages of high mechanical strength, high pressure resistant, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The backwashing energy can be gathered when flushing, and the backwashing effect is good.
wedge wire screen Application
Architecture and construction
Food and beverage screens
OEM screen components
Refining and petrochemical
Waste water treatment
Water well and oil well
Coal and mine
Chemical industry
Pharmacy
Metallurgy
Coal mining
Environmental protection
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
