Multi Layer Sintered Filter Mesh for 5um
Stainless steel sintered mesh is a high-performance filtration material manufactured through advanced layered sintering technology. Composed of multiple layers of precision-woven stainless steel wires, it undergoes high-temperature vacuum sintering to form a rigid porous structure.
This product combines exceptional mechanical strength with uniform filtration precision, making it ideal for demanding industrial applications such as chemical processing, pharmaceuticals, food & beverage, and high-temperature gas filtration.
Available in customizable thicknesses (1-300μm) and sizes, it supports standard specifications (e.g., 100-1500mm length, 25-180mm diameter) or tailored designs.
Structure and Manufacturing:
Typically made from multiple layers (often 2 to 5) of woven stainless steel wire mesh with varying weave patterns and wire diameters to achieve specific filtration properties.
The sintering process (diffusion bonding) creates a permanent bond at the wire intersections, enhancing the mesh's strength, rigidity, and dimensional stability.
Some designs incorporate a perforated metal layer for added support and robustness.
Common stainless steel grades used are 304, 316, and 316L due to their excellent corrosion and temperature resistance.

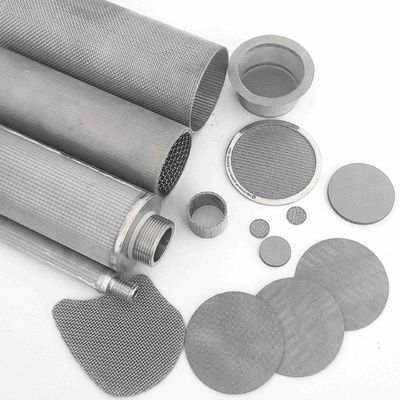

| Product name |
Sintered Mesh Filter Disc |
| Type |
Signle layer without edges
Single layer with edged
Multi layer filter disc with edge
Dutch weave filter disc
Spot welded with closed selvaged type
Spot welded without closed selvaged type

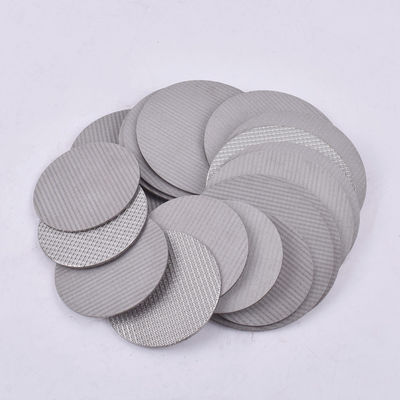

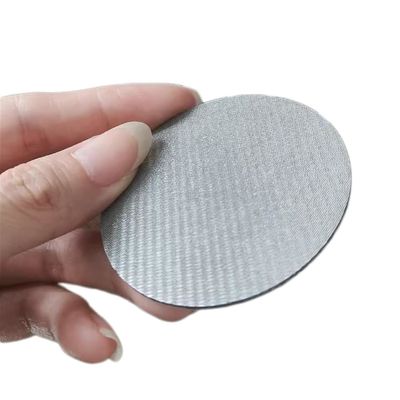

Sintered mesh filter disc
Black wire cloth disc
|
| Material |
201 304 304L 316 316L430 etc |
| Weave type |
Plain weave,twilled weave,plain dutch weave,twilled dutch weave,reverse dutch weave |
| Wire diameter |
0.025mm--2.5mm |
| Thickness |
1.0mm---5.0mm |
| Filter rate |
1--200micron |
| Layers |
Single layer or multi layers |
| Shapes |
Rectangle,square,round,oval,circular,cap,waist |
Applications:
Industrial: Catalyst recovery, hydraulic oil filtration, powder coating systems
Environmental: Wastewater treatment, exhaust gas filtration
Energy: Fuel filtration, nuclear cooling systems
Food & Pharma: Sterile air vents, fermentation process control
Advantages:
Higher mechanical strength and resistance to deformation.
More consistent and stable pore sizes for reliable filtration.
Improved durability and longer service life.
Easier to clean and reuse.
Can withstand higher pressures and temperatures.
Packaging & Logistics
Anti-corrosion packaging:
wooden case + safety belts + pvc films
paper case + safety belts + pvc films
Global delivery: 7-15 days for samples; 20-30 days for bulk orders.
Why Choose Us?
15+ years of specialized expertise in sintered metal solutions.
Full-spectrum testing: Bubble point, permeability, and tensile strength validation.
24/7 technical support for installation and troubleshooting.
