304 Stainless Steel Wedge Wire Grates Panel Industrial Filter
Product Information

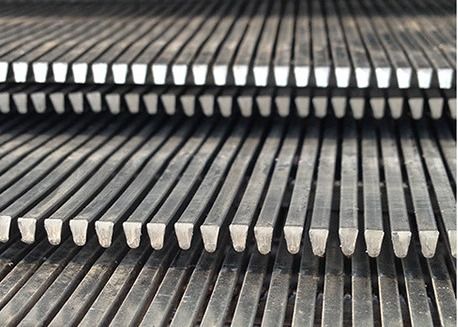

Wedge Wire Screen Panels, also known as Vee-Wire screen panel, Continuous slot Vee-wire screen plate, Wire wrapped screen plate, Wire wound screen panel, water filter.Made up of Vee-shaped wrapped wire and round rod in each intersection, welded together.

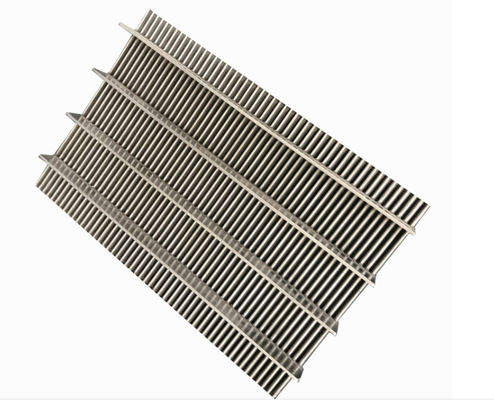

Wedge wire screen panels, also known as wedge wire flat screens, are rectangular wedge wire materials used for filtration. They are manufactured using equally spaced wedge wires and support rods, welded onto support profiles at 90° at each intersection.
The shape and characteristics of wedge wire screen panels facilitate accurate filtration through vibration or liquid flow, suitable for screening solids and filtering liquids. The smooth surface and small slot sizes ensure precision efficiency, with customization options for slot spacing and support bars based on usage scenarios.
Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round: from 2.5mm---6.0mm
|
| Slot Opening |
0.02-5mm |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
Advantage
Choose wedge wire screen panels for durable and reliable support for machinery and equipment.
Effective filtration with stable accuracy.
Welded and robust construction.
Customizable design for various applications.
High durability with low maintenance requirements.
Corrosion resistance for long-lasting performance.
Application

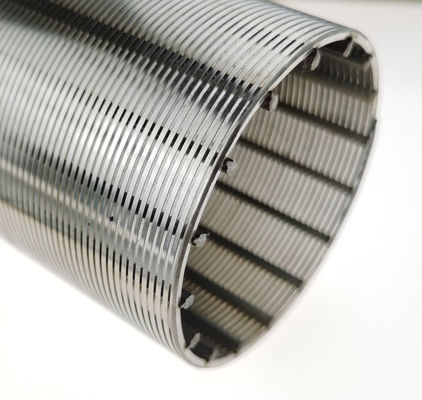

Wedge wire screen tubes provide accurate filtration in industrial processes and construction.
Used in vibrating screen decking, surface water intake screens, fish diversion screen panels, and grain drying screens.
Also suitable for the salt industry, food processing, water treatment equipment, mineral processing, and coal-cleaning plants.
Packing
We will pack according to customer's requirements:
1. Use bubble film packaging to avoid collision and protect the surface coating.
2. Use sturdy wooden pallets and add corner guards on all sides to avoid damage during shipping.
3. Usually more sets are produced for each order, given for free and shipped together. Reduce the occurrence of damage
Serves
1.Fast feedback and complete solution
2.Competive price and better delivery time
3.Free samples made in 2 days
4.Complete order system
5.Excellent after sale service
