Wedge Wire Screen Plate Support Grids for Construction
Wedge wire screen Product Information

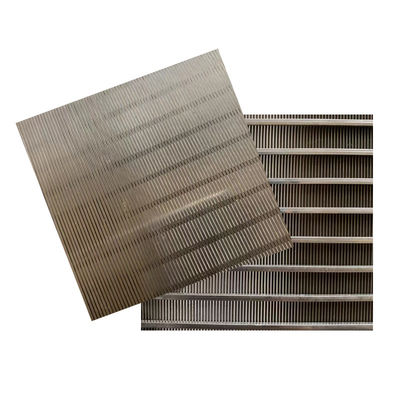

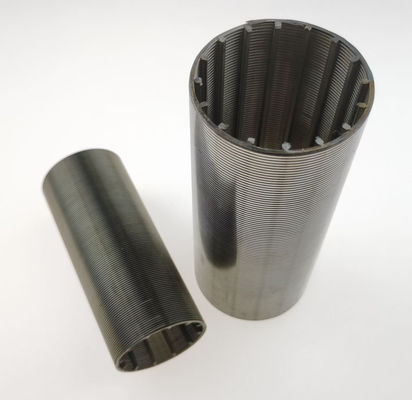

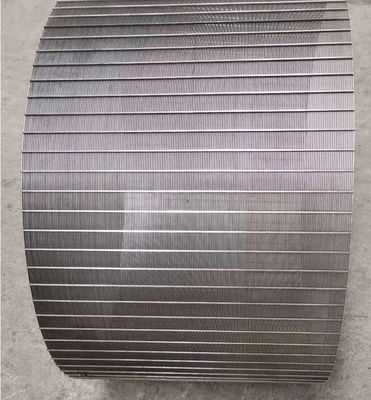

Wedge wire screens (also known as profile wire screens) are high-performance filtration and screening components made from stainless steel wires welded onto support rods. They are widely used in industries requiring precise separation, dewatering, or filtration due to their durability, corrosion resistance, and customizable slot sizes.
Our wedge wire screen panels are a reliable and efficient solution for filtration and separation processes in various industries. With a durable structure, precise slot openings, and self-cleaning characteristics, they are the preferred choice for demanding applications. Recently, a client from the Filtration Engineering Group in India ordered round rod support wedge wire screen panels with a 0.5 mm slot size for fine sediment filtration. This showcases our commitment to providing high-performance screening solutions that meet our clients' urgent water quality optimization needs.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
Corrosion resistance, high and low temperature resistance, pressure resistance, good wear resistance, long use period
Usage widely used in laboratory, chemical fiber, petroleum, chemical industry, pharmacy, foodstuff, water treatment electric, power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic etc.
Wedge wire screen Application
| Water Treatment |
Well screens, intake filters, sewage treatment |
| Oil & Gas |
Sand control screens, filtration in refineries |
| Food & Beverage |
Sugar refining, starch processing, breweries |
| Mining & Minerals |
Coal washing, ore classification, dewatering |
| Chemical Processing |
Acid filtration, slurry separation |
| Pulp & Paper |
Fiber recovery, wastewater treatment |
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
