304 316L Stainless Steel Knitted Wire Mesh for Industrial Filtration

We maintain huge stocks of mesh. Rolls of woven wire stainless steel mesh are readily available in a wide range of mesh specifications. We keep stocks with a mesh count from 2 mesh (with a 1.6 mm wire diameter) through to 500 mesh (with a 0.025 mm wire diameter). These provide apertures from 11.1 mm down to 0.025 mm (25 microns). Primarily of stainless steel, woven wire mesh stocks are also held in a range of other materials including mild steel, brass, phosphor bronze, copper, monel, and aluminium. Furthermore, we stock Type 304 and Type 316 stainless steel mesh in most specifications.

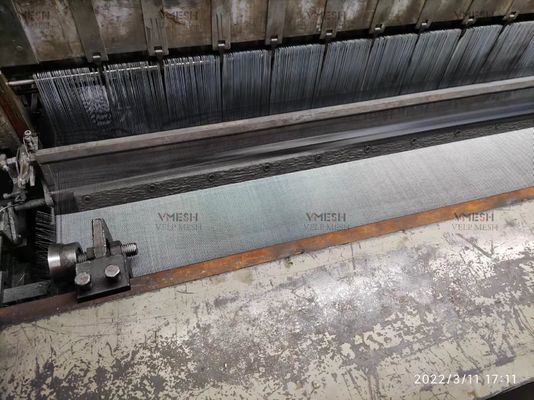

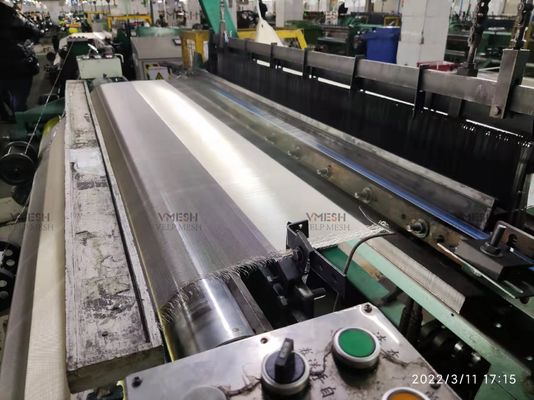

Mesh can be woven in several ways. The largest demand is for plain weave woven mesh. For the finer meshes, twilled weave woven mesh is available from our stocks. We also supply plain dutch and twilled dutch weaves. Of note, the dutch weaves allow for the finest filtration, down to 0.006 mm (6 microns).

Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. This weave permits a heavier wire diameter to be used than would be possible in a plain weave wire mesh with similar mesh count.

• Multi-Mesh Versatility: Standard mesh options: 20, 30, 40, 50, 100, 635 mesh (custom mesh available). Wire diameter range: 0.15mm (100 mesh) to 1.00mm (20 mesh) with precise aperture control.
• Material Excellence: 304/316 stainless steel for superior corrosion resistance and high-temperature stability (up to 500°C).
• Precision Weaving Technology: Plain weave pattern ensures uniform openings and ≥98% open area ratio. Tolerance control: Aperture deviation ≤±3% (e.g., 100 mesh aperture: 0.27mm ±0.008mm).

Woven wire mesh is available on the roll or cut to size. We provide fine and strict packaging to ensure that the goods will not be damaged.

Standard packaging includes: Paper pipe inside of the mesh → then waterproof paper → moist proof paper → bigger paper pipe → poly-wood carton. Or we can pack as per your request.
