Stainless Steel Woven Wire Mesh Cloth - 304/316 Grade for Industrial Machines

At some stage of production, many industries need to sieve, screen or grade their raw materials or products. In support of this, there is nothing quite as superior as woven wire mesh as a filtration medium. It is a highly durable material, being both resistant to corrosion and very strong. Mesh also offers excellent open areas. Likewise, it is supplied in many specifications. We also supply stainless steel woven mesh for many other uses.

We maintain huge stocks of mesh. Rolls of woven wire stainless steel mesh are readily available in a wide range of mesh specifications. We keep stocks with a mesh count from 2 mesh (with a 1.6 mm wire diameter) through to 500 mesh (with a 0.025 mm wire diameter). These provide apertures from 11.1 mm down to 0.025 mm (25 microns). Primarily of stainless steel, woven wire mesh stocks are also held in a range of other materials. These include mild steel, brass, phosphor bronze, copper, monel, aluminium. Furthermore, we stock Type 304 and Type 316 stainless steel mesh in most specifications.

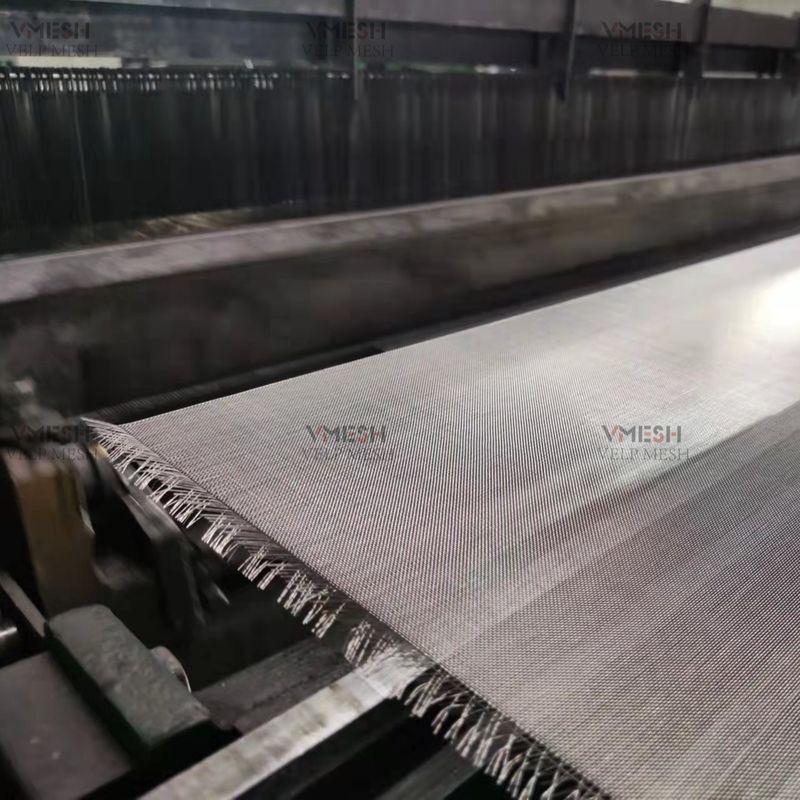

Mesh can be woven in several ways. The largest demand is for plain weave woven mesh. For the finer meshes, twilled weave woven mesh is available from our stocks. We also supply plain dutch and twilled dutch weaves. Of note, the dutch weaves allow for the finest filtration, down to 0.006 mm (6 microns).

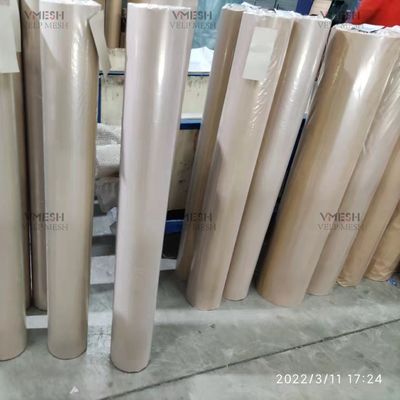

Woven wire mesh is available on the roll or cut to size. We provide fine and strict packaging to ensure that the goods will not be damaged. The usual packing is wooden case, or as customized.
