304 316 316L Stainless Steel Wire Mesh Cloth - 25 to 300 Micron Filter Screen

Large Image : 304 316 316L Stainless Steel Wire Mesh Cloth - 25 to 300 Micron Filter Screen

Product Details:

Place of Origin:	China
Brand Name:	VELP
Certification:	SGS
Model Number:	26

Payment & Shipping Terms:

Minimum Order Quantity:	1 roll
Price:	USD10-USD20/SQM
Packaging Details:	wooden case+waterproof paper
Delivery Time:	5-10 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	30000 rolls month

Contact Now

304 316 316L Stainless Steel Wire Mesh Cloth - 25 to 300 Micron Filter Screen

Description

Name:	Stainless Steel Wire Mesh Cloth Screen Filter Mesh	Application:	Filtration, Separation, Protection, Reinforcement
Mesh Size:	1 Mesh-635 Mesh	Weaving Type:	Plain Weave
Hole Shape:	Square Hole	Wire Gauge:	0.02-2.03mm
Sample:	Free,Avaliable	Feature:	Corrosion Resistance
Highlight:	304 stainless steel wire mesh , 316L micron filter screen , stainless steel mesh cloth

304 316 316L Stainless Steel Wire Mesh Cloth - 25 to 300 Micron Filter Screen

Product Specifications

Product Name	Stainless Steel Wire Mesh Cloth Screen Filter Mesh
Application	Filtration, Separation, Protection, Reinforcement
Mesh Size	1 mesh-635 mesh
Weaving Type	Plain weave
Hole Shape	Square Hole
Wire Gauge	0.02-2.03mm
Sample	Free, Available
Feature	Corrosion Resistance

Product Overview

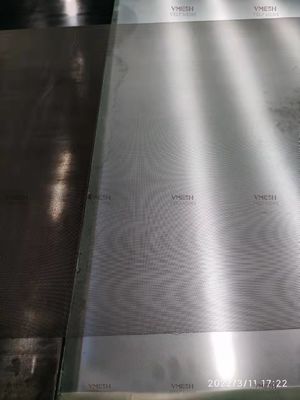

Our stainless steel wire mesh cloth is precision-woven from 304, 316, and 316L-grade stainless steel to meet demanding filtration needs in harsh environments. Available in 25-300 micron sizes (equivalent to 700-80 mesh), this versatile mesh is engineered for accuracy and durability in liquid, gas, and particle filtration tasks.

Product Name	Woven Wire Mesh, Wire Cloth
Stainless Steel Grade	304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options	Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range	0.02 - 6.30mm
Hole Size Range	1 - 3500mesh
Weave Types	Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave
Mesh Width	Standard less than 2000 mm
Mesh Length	30m rolls or cut to length, minimum 2m
Mesh Type	Rolls and sheets are available

Product Benefits

Widest range filtration, from over 6 inch aperture down to 1 micron nominal
High open area/flow rate
Closely controlled, accurate apertures
Smooth surface-screening surface has no sharp edges, burrs or acute angles
Very high temperature tolerance (variable according to metal selected)
Usable under high pressure
Flexible
Ideal for forming rigid concave/convex shapes
Special aperture requirements can be met without high tooling costs
High durability
Self supporting
Suitable as upper for less rigid media
Stable under tension

Key Features

Multi-Micron Options

Choose from 25/70/80/100/200/300 micron (or custom sizes) to match specific filtration requirements, ideal for applications like oil refining, food processing, and laboratory sieving.

Corrosion-Resistant Materials

304 Stainless Steel: Cost-effective for general-purpose use. 316/316L Stainless Steel: Superior resistance to chlorides and acids, perfect for marine or chemical environments.

Precision Weaving Technology

Uniform pore structure ensures consistent filtration performance and prevents particle bypass.

High-Temperature Tolerance

Withstands temperatures up to 800°C (1472°F) for heat-intensive processes.

Core Advantages

Extended Service Life: 3-5x longer lifespan than polymer meshes due to ultra-fine grain structure resisting deformation
Zero Contamination Risk: Surface meets food/pharma hygiene standards without chemical coatings
Cost-Efficiency: Reduced downtime from clogging + reusable after ultrasonic cleaning

Packing Options

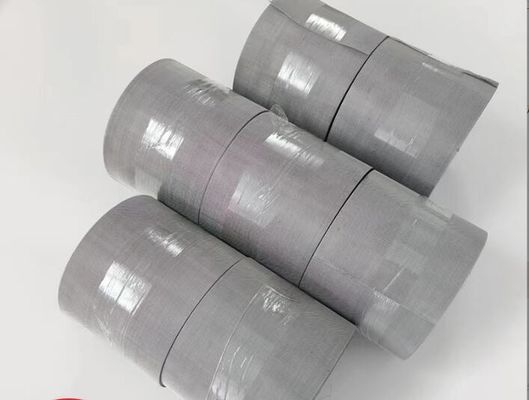

Woven wire mesh is available on the roll or cut to size. We provide fine and strict packaging to ensure that the goods will not be damaged. The usual packing is wooden case, or as customized.

Customization Services

Size & Shape: Custom-cut panels, rolls, or cylindrical sleeves to fit equipment dimensions
Edge Finishing: Options include hemmed edges, welded frames, or reinforced borders for heavy-duty use
Hybrid Designs: Combine multiple micron grades in one mesh for multi-stage filtration systems

Why Choose Our Mesh?

Extended Service Life: 3-5x longer lifespan than nylon/PET filters under similar conditions
Easy Maintenance: Resists clogging and cleans effortlessly with water or compressed air
Multi-Industry Compatibility: Suitable for food-grade filtration, pharmaceutical sieving, water treatment, and automotive systems
