Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring

Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring

Large Image :  Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring

Product Details:
Place of Origin: China
Brand Name: VELP
Certification: SGS
Model Number: stucco 01
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: USD1-USD2/PCS
Packaging Details: iron pallet + safety belt+ plastic films
Delivery Time: 5-15 workdays
Payment Terms: L/C, T/T
Supply Ability: 100000 Piece/Pieces per Month
Contact Now

Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring

Description
Keywords: Hy Rib Concrete Formwork Sample: Available And Small Size Free For New Customer
Length: 2800mm Services: Online Technical Support
Weight: 11 Kg/m2 Keyword: Long Life, Easy Install, Anti Rust
Packing: Pvc Film + Safety Belts + Iron Pallet Product Usage: Building Construction
Highlight:

Galvanized Hy-Rib formwork

,

Concrete formwork system

,

Easy cement pouring mesh

Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring
Product Attributes
Keywords Hy rib Concrete formwork
Sample Available and small size free for new customer
Length 2800mm
Services Online technical support
Weight 11 kg/m2
Keyword Long life, easy install, anti rust
Packing PVC film + safety belts + iron pallet
Product Usage Building construction
Easy To Install Galvanized Hy-Rib Concrete Formwork Cement Formwork Systems

Cement pouring formwork structure is a lightweight, structural stay-in-place formwork system used to build reinforced concrete walls. It is composed of two filtering grids made of rib lath and reinforced by C-profiles. The grids are attached to each other with articulated rebar connectors.

Once Cement pouring formwork mesh is secured to the ground, concrete is poured inside. The excess water eliminates itself through the grids while the fluid concrete becomes semi-solid. The elimination of the excess water decreases pressure against the grids. We remains inside the structure and acts as reinforcement.

We constructions can be completed simply, rapidly and cost effectively with non-qualified labor.

Product Specification
Material Galvanized steel
Type Cement Formwork Systems
Length 2800mm 2500mm 2200mm
Product Weight 11 kg/m2
Package 10sheets/bundle 500 sheets/pallet
Usage Concrete constructions, swimming pool construction, building
Product Advantages
  • Easy placement, alignment, shoring and fixing of panels
  • Easy creation of openings (doors and windows)
  • Easy insertion of rebar reinforcement (if necessary)
  • Easy placement of conduits for electrical and plumbing
  • Easy visual inspection of the concrete pour
  • Easy last minute changes
  • Easy cladding or coating of any types of finishing
  • Possibility to place the upper slab formwork before concreting the walls
  • Possibility to pour all the walls of one complete floor in one pass
  • Possibility to build non-repetitive constructions at low cost
  • No need for anti-cracking welded wire
  • No stripping or shutter rotation
  • No need to place edge formwork
Cement Pouring Formwork Structure Composition

The two sides weight 11 kg/m2. It is composed of:

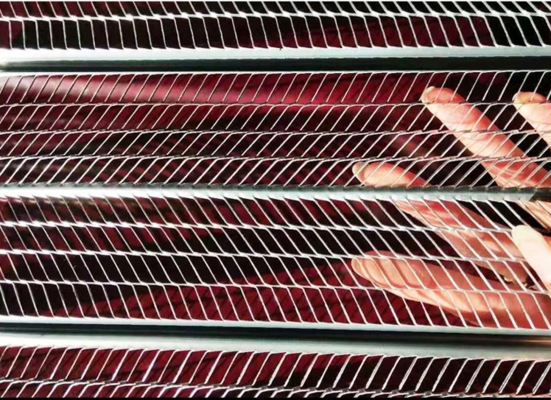

Rib Lath
Expanded metal with rib produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847. 0.5 mm thickness.

C-Profiles
Produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847. 0.6 mm thickness.

Connectors
Made from steel in coil grade B DIN 17 223 or equivalent. 20 mm width. 1.5mm thickness.

Longitudinal Rebar
Made from Fe 400 (French Norm) or equivalent. 500 N/mm2 elasticity limit. 700 N/mm2 traction strength. 5 mm diameter (minimum).

Company Information

Founded in 2000, located in ANPING COUNTY, CHINA. Covering an areas of 20000 sqm, specialized in architectural decorative mesh, construction building mesh, SS 304 fine filter mesh, walkway grating products.

With more than 15 years rich experience in this field. Velp has adopted modern management systems to ensure product quality.

Mainly markets: Australia, Germany, France, UK, Spain, Sweden, Switzerland, Norway, Italy, USA, Canada, Brazil, Panama, Middle East, Southeast Asia.

We sincerely believe that with superior products, reasonable price and comfortable services. That we can cooperate well with every customer.

Product Images
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring 0
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring 1
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring 2
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring 3
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring 4
Galvanized Hy-Rib Concrete Formwork System for Easy Cement Pouring 5

Tag:

Hy Rib Permanent Formwork 450mm*2000mm,

450mm*2000mm High Ribbed Formwork,

0.45mm Steel High Rib Lath
