Galvanized Steel Construction Joint Permanent Formwork Mesh for Concrete

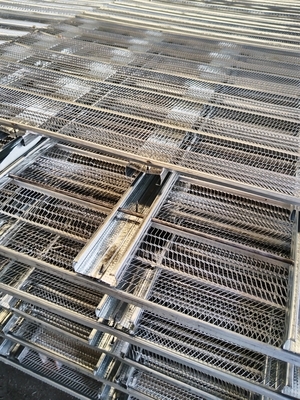

Cement pouring formwork structure is a lightweight, structural stay-in-place formwork system used to build reinforced concrete walls. It is composed of two filtering grids made of rib lath and reinforced by C-profiles. The grids are attached to each other with articulated rebar connectors.

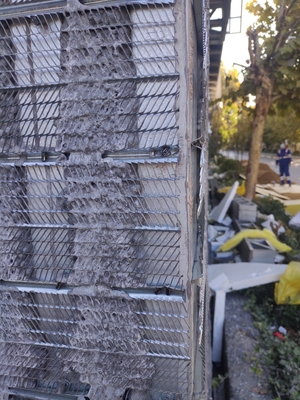

Once Cement pouring formwork mesh is secured to the ground, concrete is poured inside. The excess water eliminates itself through the grids while the fluid concrete becomes semi-solid. The elimination of the excess water decreases pressure against the grids. We remains inside the structure and acts as reinforcement.

We constructions can be completed simply, rapidly and cost effectively with non-qualified labor.

The Cement pouring formwork structure Lightweight Structural Formwork System stands out from traditional formwork solutions by dramatically accelerating the installation process. This innovative system is designed to be user-friendly and intuitive, allowing construction teams to assemble structures with remarkable speed. As a result, projects can enjoy a reduced timeline, ensuring that buildings are ready for occupancy much sooner than with conventional methods. This efficiency not only benefits the project's schedule but also allows for a quicker return on investment for developers and property owners.

The Cement pouring formwork structure formwork system is a wise investment for any construction project, particularly when considering the long-term financial implications. Its reusable components mean that after the initial setup, the same formwork can be utilized for multiple projects, significantly cutting down on the need for frequent template purchases. This cost-saving aspect is further enhanced by the reduction in labor hours required for installation and the elimination of expenses associated with the disposal or recycling of traditional, single-use formwork materials. Over time, the Cement pouring formwork structure system proves to be a cost-effective solution that contributes to the overall profitability of construction endeavors.

In an era where environmental consciousness is paramount, Cement pouring formwork structure's commitment to sustainability is evident in its eco-friendly formwork system. The ability to reuse the formwork repeatedly means that fewer materials are consumed and less waste is generated, which is a stark contrast to the waste produced by single-use traditional formwork. This reduction in waste not only helps in conserving natural resources but also lessens the environmental impact of construction activities. Cement pouring formwork structure's dedication to eco-friendly practices resonates with the modern construction industry's push towards greener solutions, making it a preferred choice for environmentally responsible builders and developers.

The two sides weight 11 kg/m2. It is composed of:

Expanded metal with rib produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.

0.5 mm thickness.

Produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.

0.6 mm thickness.

Made from steel in coil grade B DIN 17 223 or equivalent.

20 mm width.

1.5mm thickness.

Made from Fe 400 (French Norm) or equivalent.

500 N/mm2 elasticity limit.

700 N/mm2 traction strength.

5 mm diameter (minimum).

We continually invest in most advanced design, production and testing techniques helping us to meet and exceed international quality standards across a number of industries such as mining, sieving, filtering, industry protection, building architectural decoration, building construction, aviation, petroleum.

Meeting our clients' exacting wired mesh requirements is our ultimate goal and something we pride ourselves in.
