Customized Roll Size Stainless Steel Plain Weave Filter Mesh Screen For Filter Layer

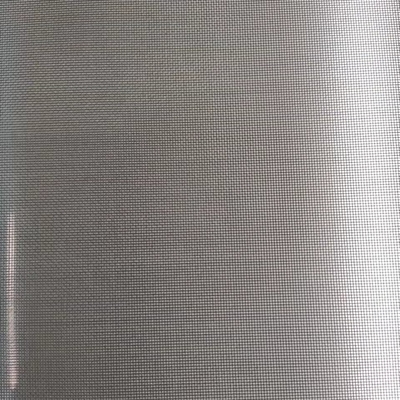

Stainless Steel Woven Mesh Introduction

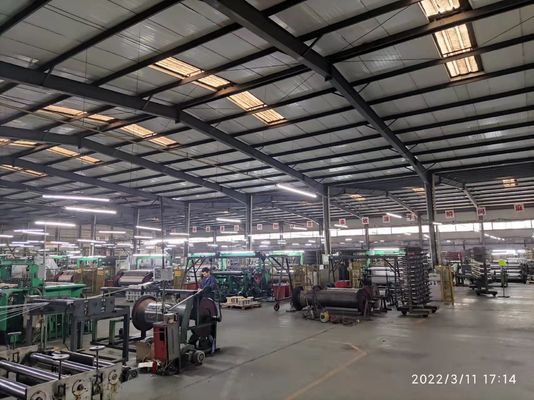

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive.
And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
Specification
| Product Name: |
Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade: |
304, 304L, 316, 316L, 310s, 904L, 430, etc
|
| Special Material Options: |
Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range: |
0.02 - 6.30mm |
| Hole Size Range: |
1 - 3500mesh |
| Weave Types: |
Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave |
| Mesh Width: |
Standard less than 2000 mm |
| Mesh Length: |
30m rolls or cut to length, minimum 2m |
| Mesh Type: |
Rolls and sheets are available |
Product Advantages
Exceptional Corrosion Resistance
High Strength and Durability
Versatility in Weave Patterns and Mesh Sizes
Reusability
Product Applications
Stainless Steel Woven Wire Mesh has excellent acid resistance, alkali resistance, heat resistance and corrosion resistance. Stainless steel weave screen is used in chemical industry, petroleum, aerospace, sewage system, medicine, automobile, industrial field, etc. Stainless steel woven wire mesh has become a widely used material. The hygiene standards and chemical resistance of Stainless Steel Woven Screen are crucial, so it plays an important role in the screening and filtration of solids, liquids and gases in various industrial fields.
Packing
Woven wire mesh is available on the roll or cut to size. We provide fine and strict packaging to ensure that the goods will not be damaged. The usual packing is wooden case, or as customized.
woven bag + safety belt + pvc film + wooden case
Customization Services
- Size & Shape: Custom-cut panels, rolls, or cylindrical sleeves to fit equipment dimensions
- Edge Finishing: Options include hemmed edges, welded frames, or reinforced borders for heavy-duty use
- special Designs: Combine multiple micron grades in one mesh for multi-stage filtration systems
