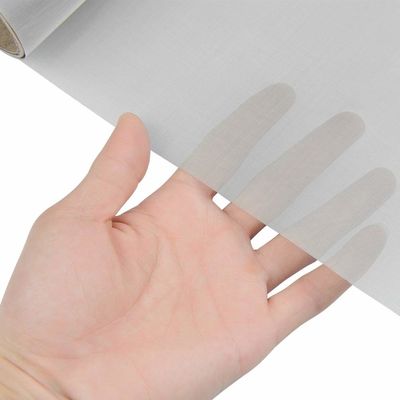

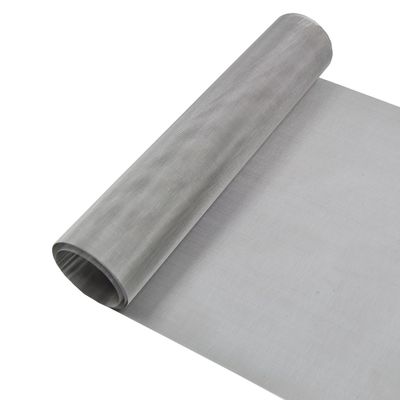

316 Stainless Steel 500 Mesh Twill Dutch Weave Wire Mesh Filter Screen
Stainless Steel Woven Mesh Introduction
Twill Dutch Weave Wire Mesh is specially designed to filter fine impurities due to the fusion of "twill" and "Dutch" weaving techniques. In this woven structure, the warp and weft threads alternately pass through two warp threads. The thicker warp threads are paired with the thinner weft threads, resulting in a lightweight and compact durable effect. The weft threads are woven at an extremely high density, completely covering the warp threads, forming a high-density, compact and durable mesh structure. This weave provides complex flow channels that can maintain reasonable flow rates while ensuring the performance of retaining particles.
Specification
| Product Name: |
Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade: |
304, 304L, 316, 316L, 310s, 904L, 430, etc
|
| Special Material Options: |
Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range: |
0.02 - 6.30mm |
| Hole Size Range: |
1 - 3500mesh |
| Weave Types: |
Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave |
| Mesh Width: |
Standard less than 2000 mm |
| Mesh Length: |
30m rolls or cut to length, minimum 2m |
| Mesh Type: |
Rolls and sheets are available |
| Twill Dutch Weave Wire Mesh & Screen / Cloth Specification |
| Mesh Range |
Wire Diameter(mm) |
Hole Opening(μm) |
Materials |
| 80 × 700 |
0.110 × 0.080 |
30 |
SS 304, 316 etc |
| 165 × 800 |
0.070 × 0.050 |
20 |
SS 304, 316 etc |
| 165 × 1400 |
0.063 × 0.040 |
15 |
SS 304, 316 etc |
| 200 × 600 |
0.050 × 0.032 |
10 |
SS 304, 316 etc |
| 200 × 1400 |
0.050 × 0.032 |
10 |
SS 304, 316 etc |
| 250 × 1600 |
0.050 × 0.032 |
8 |
SS 304, 316 etc |
| 280 × 2200 |
0.050 × 0.032 |
7 |
SS 304, 316 etc |
| 300 × 2100 |
0.036 × 0.025 |
6 |
SS 304, 316 etc |
| 325 × 2300 |
0.035 × 0.025 |
4 |
SS 304, 316 etc |
| 400 × 2800 |
0.030 × 0.018 |
3 |
SS 304, 316 etc |
Product Benefits
Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
High open area/flow rate.
Closely controlled, accurate apertures.
Smooth surface
screening surface has no sharp edges, burrs or acute angles.
Very high-temperature tolerance (variable according to metal selected).
Usable under high pressure.
Flexible - ideal for forming rigid concave / convex shapes.
Control of chemical/acid/ corrosion resistance using different metals.
Special aperture requirements can be met without high tooling costs.
High durability.
Self-supporting.
Product Applications
Stainless Steel Woven Wire Mesh has excellent acid resistance, alkali resistance, heat resistance and corrosion resistance. Stainless steel weave screen is used in chemical industry, petroleum, aerospace, sewage system, medicine, automobile, industrial field, etc. Stainless steel woven wire mesh has become a widely used material.
The hygiene standards and chemical resistance of Stainless Steel Woven Screen are crucial, so it plays an important role in the screening and filtration of solids, liquids and gases in various industrial fields.
Packing
Below pictures is for our existed clients, stainless steel weave wire mesh help them solve a lot of issues in industry of filtration, sieve, chemical, industrial, oil etc.
We can cut any size of width according to clients’ request, making stainless steel screen mesh conveniently to use for clients. Before loading / delivery products, we will package stainless steel screen mesh by kraft paper, and then package into the wooden case. In order to Protect stainless steel from damage.
woven bag + safety belt + pvc film + wooden case
