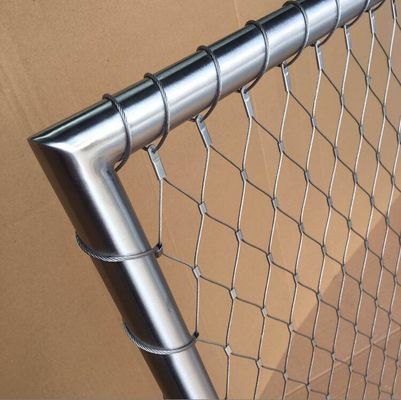

Rust-Proof Stainless Steel Wire Cable Rope Mesh For Enclosure Safety Barrier
Stianless steel cable rope mesh Product Description
Steel wire rope: Made by twisting high-strength steel wire, common materials include stainless steel wire, galvanized steel wire, etc. The steel wire rope mesh made of stainless steel wire is corrosion-resistant and suitable for humid and highly corrosive environments; Galvanized steel wire improves its rust prevention ability by coating it with a zinc layer on the surface, which is relatively low-cost and widely used. The diameter and strength grade of steel wire rope are diverse, with diameters generally ranging from 2-8mm and strengths ranging from 1570MPa to 2160MPa to meet different protection requirements.

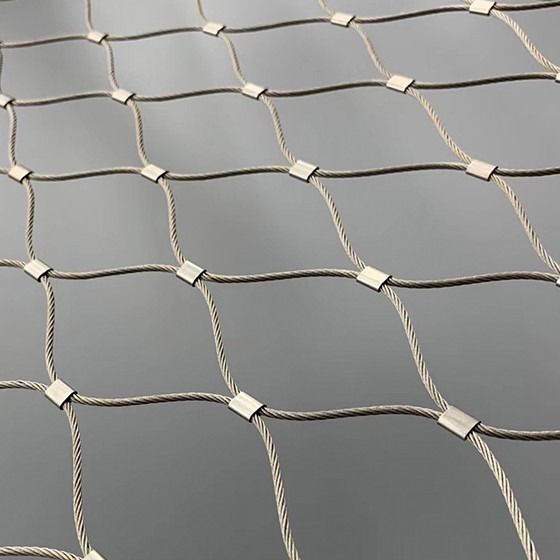

Connection method: The steel wire rope is interwoven into a mesh structure through specific weaving techniques or connectors such as buckles and loops. Common weaving techniques include twisted weaving, where adjacent steel wire ropes are twisted together at intersections to form a stable diamond or square mesh. This connection method gives the mesh good integrity and flexibility; Buckle and loop connections are made by clamping metal buckles or sleeve connections at the intersection of steel wire ropes for easy installation and adjustment.
Stianless steel cable rope mesh Parameter
| Material |
stainless steel wire 304 316 |
| Rope diameter |
1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm 5.0mm |
| Mesh Opening |
25*25mm/30*30mm/50*50mm60*60mm /80*80mm/ 90*90mm/ 120*120mm |
| Feature |
Flexibility,high strength,rust resistance,recyclable,maintenance free |
| Boundary Dimension |
1*10m/2*5m/2*3m/10*10m |
Stianless steel cable rope mesh Advantages
1. Easy to install, flexible and adaptable to complex terrain and installation angle.
2. Stainless steel cable net of all the parameters can be modified according to customer requirements.
3. Made of high-quality stainless steel wire, strong corrosion resistance, lightweight, high tension, the extreme situation can
also maintain stability.
4. Stainless steel decorative cable network with diamond-shaped openings, simple and beautiful, easy to clean.
Stianless steel cable rope mesh Applications
1. Zoo Mesh and Aviary Netting
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged. Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural environment for birds to make them live comfortably.
2. Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to the sun directly. And it can make a green wall with green plants. A green wall can regulate the temperature of the building and it can protect the building wall.
3. Decoration Mesh
The diamond-shaped holes make the stainless steel rope mesh have an aesthetic appearance, so rope mesh can be used for decoration of the building, such as ceiling and curtain wall.

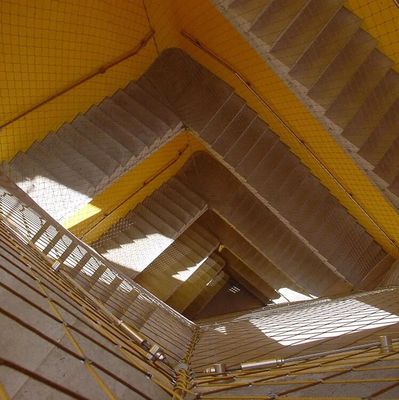

4. Balustrade Mesh
Stainless steel rope mesh is also used for the balustrade of stairs or balcony. It can make the stair grand, beautiful and safer.
5. Helideck Mesh
Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is installed around the helicopter landing deck.
6. Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing. It can increase the safety performance of suspension bridges and ensure the safety of passers.
