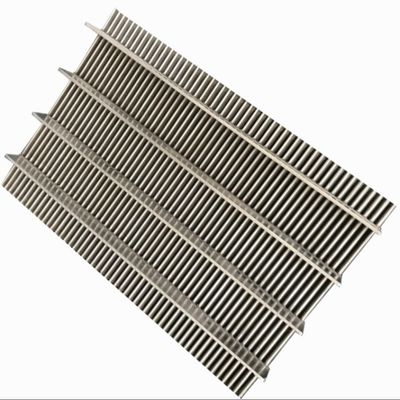

Johnson Stainless Steel 304/316 Wedge Wire Screen For Water Filter Mesh
Wedge wire screen Product Information
Wedge screen mesh is an indispensable device for conveying media piping, usually use installed in pressure reducing valves, pressure relief valves, water supply valves, square filters and other equipment. Filter is composed of the cylinder, stainless steel filter, sewage section, transmission and electrical control part. After water to be treated passes through the filter cartridge of the filter net, the impurities are blocked. When cleaning is required, the removable filter cartridge can be removed and reloaded again. Therefore, the maintenance is extremely convenient.
Wedge wire filter screen pipe johnson screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|

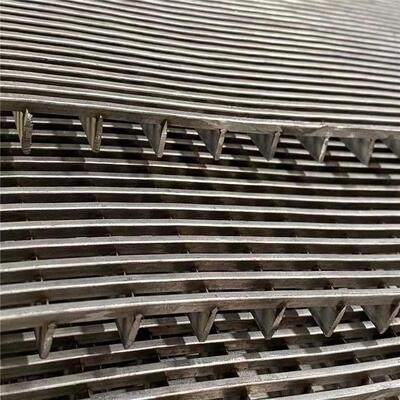

| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Prressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
Wedge wire screen Application
1.Water Treatment
Wedge wire screens are extensively used in municipal water supply, wastewater treatment plants, intake screens, resin traps, underdrain systems, and filter nozzles. They ensure efficient filtration while maintaining high water flow rates.
2.Mining and Mineral Processing
In the mining industry, wedge wire screens are used for coal washing, ore classification, dewatering, desliming, and mineral separation. Their wear resistance and accurate slot openings improve processing efficiency.
3.Food and Beverage Industry
Wedge wire screens are suitable for sugar production, brewing, juice processing, dairy processing, starch production, and food filtration. The smooth surface is easy to clean and meets hygienic requirements.
4.Oil and Gas Industry
Wedge wire screens are commonly used in oil well screens, sand control systems, water injection wells, and filtration equipment, providing reliable performance under harsh operating conditions.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
