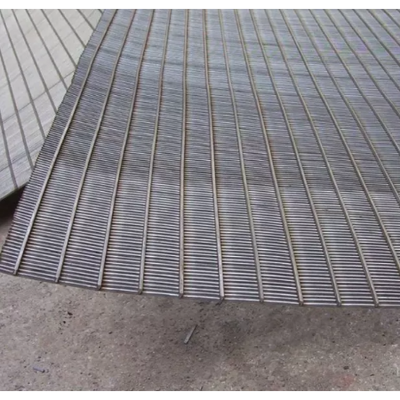

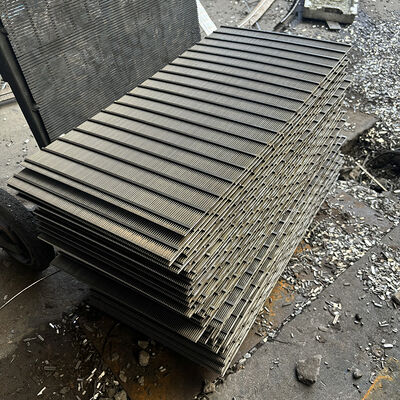

0.3mm Slot Stainless Steel Flat Wedge Wire Panel For Mining And Aggregate Industry
Wedge wire screen Product Information
Manufactured from premium stainless steel using advanced resistance welding technology, the panel combines precisely profiled wedge wires with robust support rods to create a durable structure with uniform slot openings. The 0.3mm slot size provides exceptional screening accuracy, making it ideal for separating fine particles while maintaining high flow capacity and minimizing blockage.
Unlike conventional perforated plates or woven wire mesh, wedge wire panels feature a V-shaped wire profile that widens toward the inside. This unique structure significantly reduces clogging by allowing particles to pass through smoothly without becoming trapped in the slots. The self-cleaning design ensures continuous operation, reduces maintenance requirements, and improves overall production efficiency, even in demanding industrial environments.
Constructed from high-quality stainless steel grades such as SS304, SS304L, SS316, and SS316L, the panel offers excellent corrosion resistance, abrasion resistance, and mechanical strength. It performs reliably in wet, dry, and highly abrasive conditions commonly found in mining operations, aggregate processing plants, sand washing systems, and mineral beneficiation facilities. The stainless steel construction also ensures long service life while maintaining dimensional stability under continuous heavy-duty operation.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
1. High Precision Filtration
The 0.3mm slot opening provides excellent filtration and particle separation accuracy, making it suitable for fine screening applications where consistent performance is essential.
2. Self-Cleaning Design
The V-shaped wedge wire profile creates slots that widen inward, allowing particles to pass through smoothly while reducing the risk of clogging and minimizing maintenance.
3. High Mechanical Strength
The resistance-welded construction provides excellent structural stability, allowing the panel to handle heavy loads, high pressure, and continuous operation without deformation.
4. Long Service Life
The combination of premium stainless steel materials and precision welding technology ensures exceptional durability, reducing replacement frequency and maintenance costs.
Wedge wire screen Application
1.Water Treatment
Wedge wire screens are extensively used in municipal water supply, wastewater treatment plants, intake screens, resin traps, underdrain systems, and filter nozzles. They ensure efficient filtration while maintaining high water flow rates.
2.Mining and Mineral Processing
In the mining industry, wedge wire screens are used for coal washing, ore classification, dewatering, desliming, and mineral separation. Their wear resistance and accurate slot openings improve processing efficiency.
3.Food and Beverage Industry
Wedge wire screens are suitable for sugar production, brewing, juice processing, dairy processing, starch production, and food filtration. The smooth surface is easy to clean and meets hygienic requirements.
4.Oil and Gas Industry
Wedge wire screens are commonly used in oil well screens, sand control systems, water injection wells, and filtration equipment, providing reliable performance under harsh operating conditions.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
