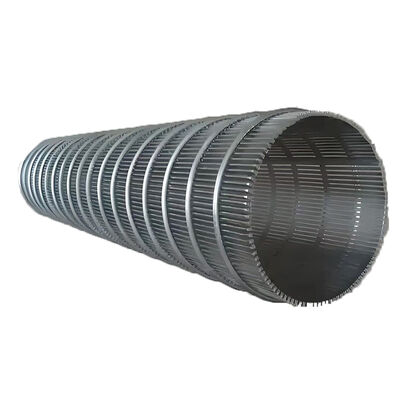

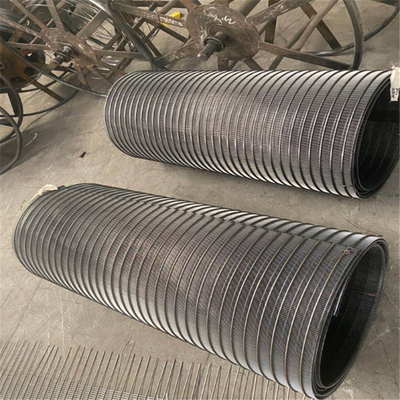

50 100 150 Micron V Shaped Stainless Steel Wire Pipe Wedge Wire Filter Mesh
Wedge wire screen Product Information
Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. It has a smooth surface, resistant to clogging and a greater structural strength. Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.
The slot openings on these screens are meticulously spaced to ensure cleanliness and smoothness, free of burrs and cuttings.Each slot opening is V-shaped, designed to be non-clogging and narrowest at the outer face, widening inwardly. This unique design, made possible by the special shape of the wire used, ensures efficient water filtration without blockages.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Prressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
Wedge wire screen Application
The product is widely used in vibrating screens, dewatering equipment, sieve bends, static screens, filter systems, and processing equipment throughout the mining, aggregate, coal, quarrying, recycling, food processing, water treatment, and chemical industries. Its excellent wear resistance and precise filtration performance help increase production efficiency while reducing operating costs.
Our wedge wire panels are available in various widths, lengths, thicknesses, support rod configurations, and frame designs to meet different project requirements. Customized slot sizes ranging from ultra-fine filtration to coarse screening are available upon request. Surface finishes, edge treatments, and mounting methods can also be tailored according to customer specifications.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
