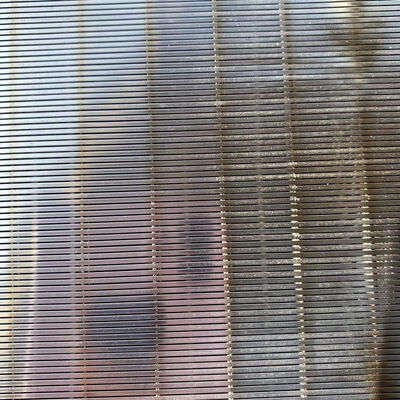

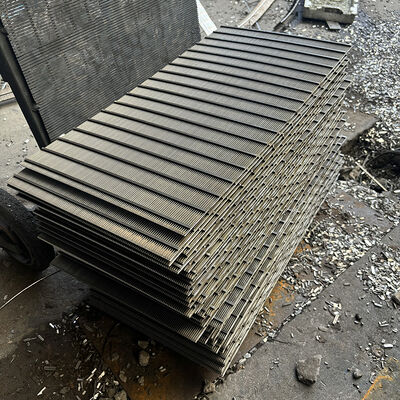

304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh
Wedge wire screen Product Information
304 Stainless Steel Wedge Wire Mesh Screen, also known as V-Shaped Johnson Filter Mesh, is a precision-engineered filtration product designed for efficient solid-liquid separation and long-lasting performance in demanding industrial environments. Manufactured by resistance welding V-shaped profile wires onto support rods, this screen forms continuous slot openings that provide exceptional filtration accuracy while maintaining high mechanical strength.
The unique V-shaped wire structure creates slots that are wider on the inside than on the outside, allowing particles to pass smoothly without clogging the screen surface. This self-cleaning characteristic significantly reduces maintenance requirements and extends the operational life of the filter. Compared with conventional perforated plates or woven wire mesh, wedge wire screens offer superior flow capacity, lower pressure loss, and improved filtration efficiency.
The manufacturing process begins with high-quality stainless steel profile wires and support rods. Advanced resistance welding technology ensures every intersection is welded securely without additional filler materials, producing a strong and durable structure with consistent slot openings. Strict quality inspection guarantees precise slot tolerance, excellent flatness, and reliable mechanical performance.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
Made from premium SUS304 stainless steel, the wedge wire mesh screen provides excellent corrosion resistance, oxidation resistance, and wear resistance. It performs reliably in environments exposed to water, chemicals, oils, and various industrial fluids. The smooth surface and hygienic construction also make it suitable for food processing and beverage production where cleanliness is essential.
Wedge wire screen Application
304 stainless steel wedge wire mesh screens are widely used in water treatment plants, wastewater treatment systems, oil and gas filtration, mining, mineral processing, coal washing, pulp and paper production, food processing, sugar refining, breweries, pharmaceutical manufacturing, resin trapping, starch production, chemical processing, and many other industrial applications.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
