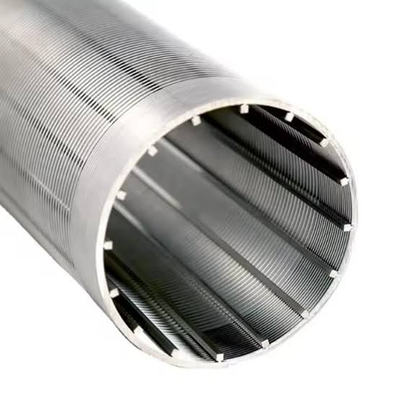

Heavy Duty Stainless Steel Johnson Sieve Mesh Wedge Wire Filter Slot Screen
Wedge wire screen Product Information
Heavy Duty Stainless Steel Johnson Sieve Mesh Wedge Wire Filter Slot Screen is a robust and high-performance filtration solution designed for demanding industrial applications that require superior strength, accurate filtration, and long service life. Manufactured using advanced resistance welding technology, the screen is constructed by welding precision V-shaped profile wires onto durable support rods, creating continuous slot openings that ensure efficient filtration, excellent flow capacity, and outstanding structural integrity.
The unique wedge wire profile forms slots that are narrow on the filtering surface and gradually widen toward the inside. This innovative design minimizes clogging by allowing trapped particles to release easily during operation or backwashing, providing an effective self-cleaning function. Compared with perforated plates and traditional woven wire mesh, Johnson wedge wire screens deliver higher open area, lower pressure drop, improved filtration efficiency, and reduced maintenance costs.
Constructed from premium stainless steel materials such as SUS304, SUS316, SUS316L, and other corrosion-resistant alloys, the heavy-duty wedge wire screen offers exceptional resistance to corrosion, abrasion, oxidation, and chemical attack. It performs reliably under high pressure, high flow rates, and harsh operating environments, making it suitable for continuous industrial production.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
1.Heavy-Duty Construction
Manufactured with high-strength V-shaped profile wires and support rods, providing excellent load-bearing capacity and long-term structural stability.
2.Accurate Slot Opening
Continuous slot openings ensure precise filtration performance and consistent particle separation for various industrial applications.
3.Anti-Clogging Design
The V-shaped wire profile creates wider internal slots, reducing clogging and providing excellent self-cleaning capability during operation.
4.High Open Area
Larger open area allows greater flow capacity, lower pressure loss, and improved filtration efficiency compared with perforated plates and woven wire mesh.
5.Excellent Corrosion Resistance
Available in SUS304, SUS316, SUS316L, Duplex Stainless Steel, and other corrosion-resistant materials suitable for harsh environments.
Wedge wire screen Application
The product is widely used in vibrating screens, dewatering equipment, sieve bends, static screens, filter systems, and processing equipment throughout the mining, aggregate, coal, quarrying, recycling, food processing, water treatment, and chemical industries. Its excellent wear resistance and precise filtration performance help increase production efficiency while reducing operating costs.

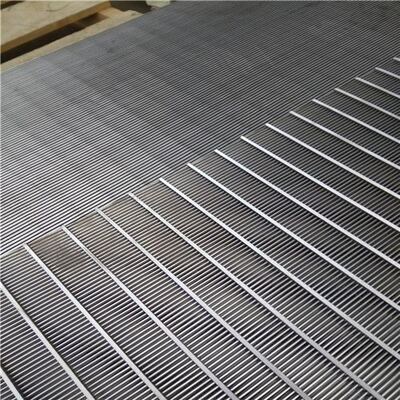

Our wedge wire panels are available in various widths, lengths, thicknesses, support rod configurations, and frame designs to meet different project requirements. Customized slot sizes ranging from ultra-fine filtration to coarse screening are available upon request. Surface finishes, edge treatments, and mounting methods can also be tailored according to customer specifications.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
