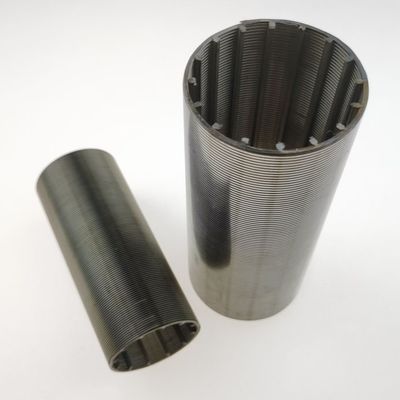

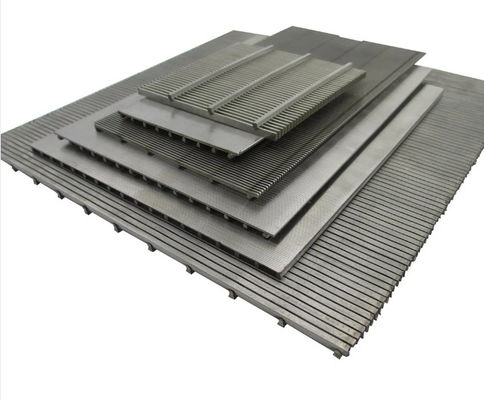

Stainless Steel Slot Wedge Wire Screen Johnson Filter Mesh For Wastewater Treatment
Wedge wire screen Product Information
Stainless Steel Slot Wedge Wire Screen Johnson Filter Mesh for Wastewater Treatment is a high-performance filtration solution specifically designed for municipal and industrial wastewater treatment systems. Manufactured using advanced resistance welding technology, the screen is formed by welding V-shaped profile wires to support rods, creating continuous slot openings with exceptional strength, precise filtration accuracy, and excellent hydraulic performance. It is widely used for solid-liquid separation, screening, dewatering, sludge treatment, and water intake applications.
The unique wedge wire structure features slots that are narrow on the surface and gradually wider toward the inside. This design prevents particles from becoming lodged within the openings, significantly reducing clogging while providing an effective self-cleaning function. As a result, the screen maintains stable filtration performance over long operating periods and minimizes maintenance requirements, making it an ideal choice for continuous wastewater treatment operations.
Manufactured from high-quality stainless steel materials such as SUS304, SUS316, and SUS316L, the Johnson filter mesh offers outstanding resistance to corrosion, abrasion, oxidation, and chemical attack. These materials perform exceptionally well in wastewater environments containing moisture, chlorides, organic matter, and various chemical contaminants. The robust stainless steel construction ensures a long service life even under demanding operating conditions.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Prressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
Wedge wire screen Application
Water treatment and wastewater treatment plants
Industrial water filtration systems
Oil and gas production
Petrochemical processing
Mining and mineral processing
Coal washing plants
Sand and gravel separation
Food and beverage processing
Sugar refining industry
Brewery and beverage filtration
Pharmaceutical manufacturing
Chemical processing plants
Pulp and paper industry
Resin trap and ion exchange systems
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
