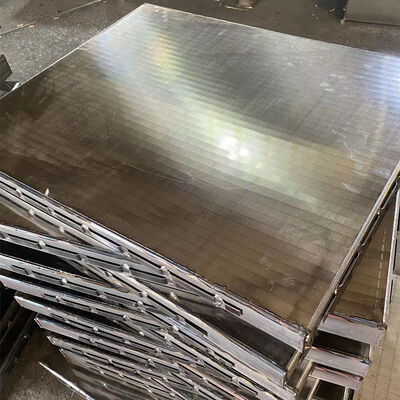

Johnson Stainless Steel Wedge Wrapped Wire Sieve Bend Screen Panel

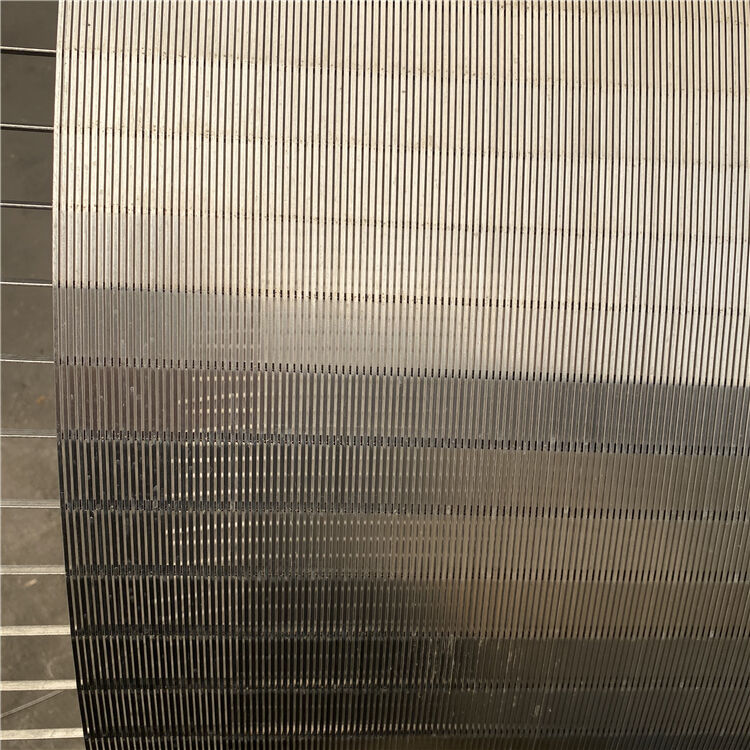

Wedge wire screen Product Information
Wedge screen mesh is an indispensable device for conveying media piping, usually use installed in pressure reducing valves, pressure relief valves, water supply valves, square filters and other equipment. Filter is composed of the cylinder, stainless steel filter, sewage section, transmission and electrical control part. After water to be treated passes through the filter cartridge of the filter net, the impurities are blocked. When cleaning is required, the removable filter cartridge can be removed and reloaded again. Therefore, the maintenance is extremely convenient.
Wedge wire filter screen pipe johnson screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Wedge wire screen Parameter
| Material |
stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm
Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
|
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm
Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm
Round : from 2.5mm---6.0mm
|
| Support profile |
Flat,triangle wire,round wire,trapezoid wire |
| Size |
can be customized |
| Characteristics |
Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing:
|
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc
|
Wedge wire screen Advantage
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Prressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
5. The wedge mesh filter(Johnson pipe) are made of metal wedge wire with Rolling and welding technology, which has the advantages of high mechanical strength, high pressure resistant, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The backwashing energy can be gathered when flushing, and the backwashing effect is good.
Wedge wire screen Application
The product is widely used in vibrating screens, dewatering equipment, sieve bends, static screens, filter systems, and processing equipment throughout the mining, aggregate, coal, quarrying, recycling, food processing, water treatment, and chemical industries. Its excellent wear resistance and precise filtration performance help increase production efficiency while reducing operating costs.
Our wedge wire panels are available in various widths, lengths, thicknesses, support rod configurations, and frame designs to meet different project requirements. Customized slot sizes ranging from ultra-fine filtration to coarse screening are available upon request. Surface finishes, edge treatments, and mounting methods can also be tailored according to customer specifications.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
