Weather Resistant Anti Corrosion Stainless Steel Cable Mesh and Stainless Steel Rope Mesh for Bridge And Staircase Protection

Weather Resistant Stainless Steel Cable Mesh For Bridge And Staircase Protection

Stainless Steel Rope Mesh Product Description

Stainless steel cable mesh is available in different material grades, including SS304 and SS316. SS304 provides good corrosion resistance for many general outdoor environments, while SS316 offers enhanced resistance to chloride-related corrosion and is often preferred for coastal or more demanding environments. Material selection should be based on local weather conditions, exposure to salt, and project requirements.

The production of weather-resistant stainless steel cable mesh involves several controlled manufacturing stages.

1. Step 1: Raw Material Selection

High-quality SS304 or SS316 stainless steel wire is selected according to the intended application. The material is checked for diameter, surface quality, and relevant specifications before processing.

2. Step 2: Wire Drawing

Stainless steel wire is drawn through specialized dies to obtain the required diameter. This process helps achieve consistent wire dimensions for subsequent rope production.

3. Step 3: Wire Rope Stranding

Individual stainless steel wires are twisted into strands. The strands are then assembled into wire ropes according to the specified construction, such as 7×7 or 7×19. The finished ropes are checked for dimensional consistency and surface condition.

4. Step 4: Mesh Weaving and Connection

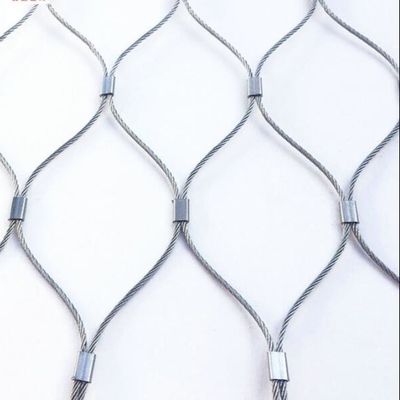

The wire ropes are arranged according to the required mesh pattern and aperture size. Depending on the selected design, rope intersections are secured by stainless steel ferrules or formed into knotted connections. Uniform spacing and accurate connection positions help create a consistent mesh surface.

5. Step 5: Cutting and Dimension Adjustment

The mesh is cut and adjusted to the required width, length, and panel dimensions. Customized configurations can be manufactured for straight staircases, curved railings, bridge barriers, and other architectural structures.

6. Step 6: Quality Inspection

Finished mesh panels are inspected for aperture dimensions, rope diameter, connection quality, surface defects, and overall dimensions. Additional mechanical or corrosion-related testing can be arranged when required by project specifications.

Stainless Steel Rope Mesh Parameter

Stainless Steel Rope Mesh Advantages

1. Superior Material Quality

Adopts 304, 316 or 316L stainless steel wire rope, which has excellent corrosion resistance, rust resistance and oxidation resistance. It can maintain stable performance in harsh environments such as humidity, salt spray, acid and alkali, and has a long service life without frequent replacement.

2. Precision Weaving Technology

Using advanced weaving processes such as twist weaving and crimping weaving, the mesh structure is firm and uniform, the mesh size is accurate (customizable from 5mm to 500mm), and the connection between the cables is tight, which can effectively prevent deformation and loosening during use.

3. Excellent Mechanical Performance

The stainless steel cable has high tensile strength, impact resistance and wear resistance, can bear large loads, and is not easy to break or deform. It meets international safety standards and can provide reliable protection for people and objects.

4. Easy Installation & Maintenance

The product is light in weight, reasonable in structure,which can be quickly installed and disassembled. Daily maintenance only requires simple cleaning, no special treatment, saving time and labor costs.

Stainless Steel Rope Mesh Applications

1. Aviary Netting

The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural environment for birds to make them live comfortably.

2. Zoo Mesh

Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.

3. Slope Protection Rope Mesh

Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.

4. Helicopter Mesh

Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is installed around the helicopter landing deck.

5. Balustrade Mesh

Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.

6. Decoration Mesh

The diamond-shaped holes make the stainless steel rope mesh have aesthetic appearance, so rope mesh can be used for decoration of building, such as ceiling and curtain wall.

7. Green Wall

Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
