Product Details:
|
| Name: | SS 304 316 Johnson Screen Mesh Wedge Wire Screen | Type: | Wedge Wire Screen |
|---|---|---|---|
| Transport Package: | Iron Pallet | Style: | Weld |
| Mtaerial: | SS 304 316 Stainless Steel | Wedge Wire: | 0.5*1.5, 1*2, 2*3, Etc |
| Size: | Square, Round, Flat Sheet, | Support Rod Size: | 1.5*2.5, 1.8*2.5, 2*3, 2*4, 3*5 |
| High Light: | SGS johnson wedge wire screen,ss 316 johnson wedge wire screen,johnson wire screen 304 ss |
||

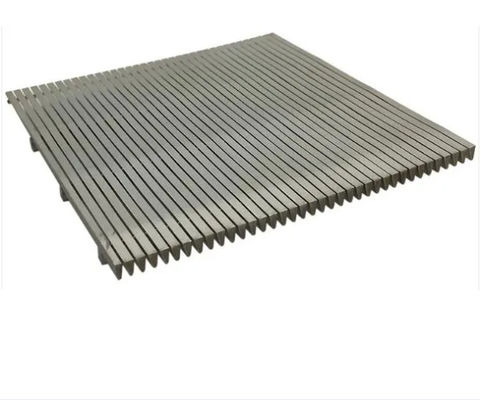

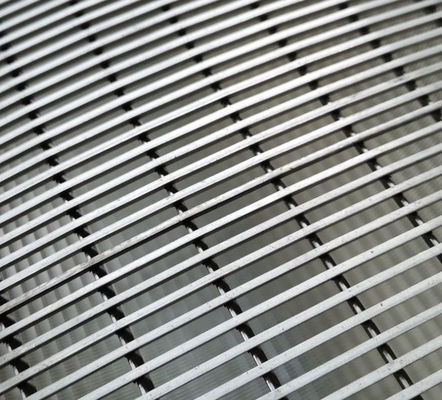

Wedge wire screen, also named Johnson screen ,wedge wire flat screens, wedge wire panels.

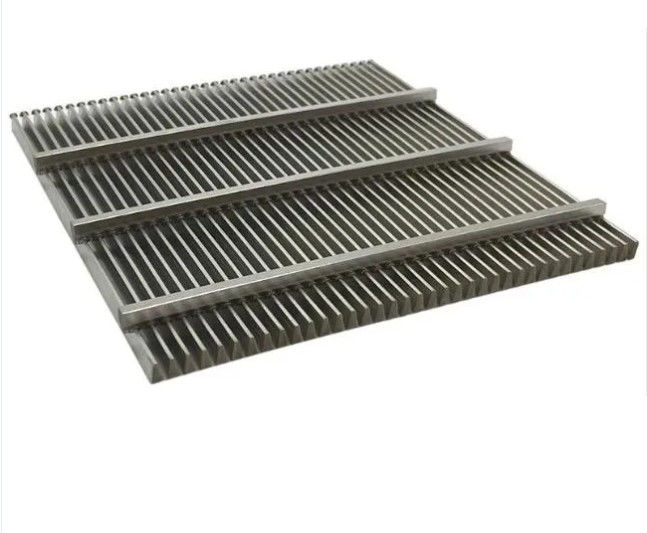

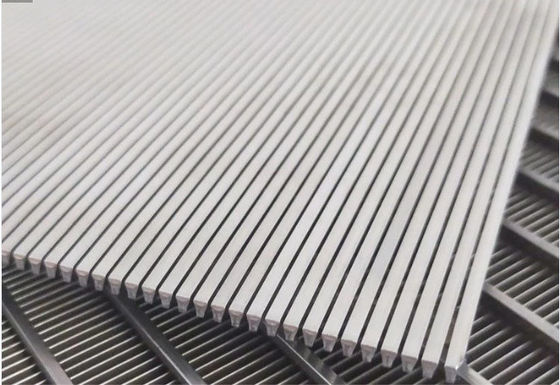

Wedge wire screen are manufactured with surface profiles and support profiles,we can call wedge wire and support rod, wedge wire are welded onto support rod at each intersection in a 90 degree.
Wedge wire screens are manufactured by resistance welding V-shaped wire on support rods. Our wedge wire screen begins with the highest quality raw wire then is made into screen that is cut, shaped, fabricated and cleaned.
Wedge wire can be ordered as raw screen material or fabricated to a finished product to suit your application requirements. The pin point control over the specifications of the slot is what allows our Screen to provide its customers with highly accurate flow distribution and effective media, debris and sediment filtration. Support Rods running perpendicular to the wrap wire strengthen and maintain the proper design configuration of the screen allowing it to handle intense pressure demands.
Our Wedge Wire Screen is designed to control various processing conditions including volumetric flow rate, minimum dimensional media retention, minimum open area and fluid pressure capabilities. Our Screen is able to professionally work a large variety of stainless steels and alloys into both standard or customized screen applications and accessory products.
| Item | Size(mm) |
| Wedge wire | 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5 |
| Support rod | 1.5x2.5 1.8x2.5 2x3 2x4 3x5 3x6 3x10 4x7 5x6 5x8 |
| Slot | 20 micron to 3000 micron,tolerance +-5 micron |
Wedge Wire Screen Diameter
Screen diameters range from 0.750" to 38" and up in fabricated sections. Your specific tolerance and size requirements will be adhered to and will meet the required industry standards.
Carbon Retention
Catalyst Retention
Center Pipes
Collectors
De-Watering
Distributors
Filter Elements
Filter Leaf Chambers
Filter Support Cores
Flow Distribution
Intake Screens
Outlet Baskets
Reactor Screens
Resin Traps
Trap Filters
Underdrains
- Extended lifetime
- Slot during abrasive operation on the screen surface does not change
- Capability to withstand heavy loads
- High open area
- Less prone to clogging
- Perfectly smooth and flat surface
- High precision of execution Increased capacity and more precise separation
- Self-cleaning effect
- Low pressure loss
- Increased efficiency
- Permanence of exploited resources
- Lower capital cost and maintenance
1. Smooth surface ,small slot sizes, accurate efficiency.
2. Stainless steel material corrosion, rust, chemical resistance, make wedge wire screen durable and long lifespan.
Wedge wire screen mainly used for liquid, particles and powder filtering,
such as: Chemical industrial, pulp and paper industrial, mining industrial, brewing industrial, sewage instrument, oil and gas industrial, etc.
