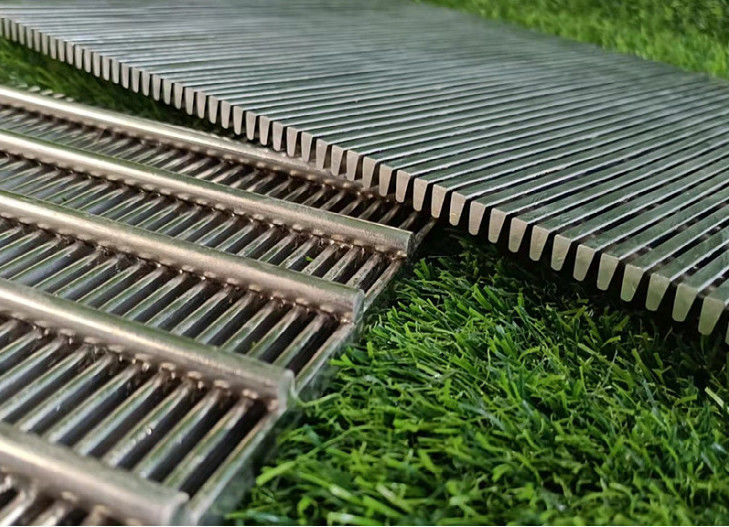

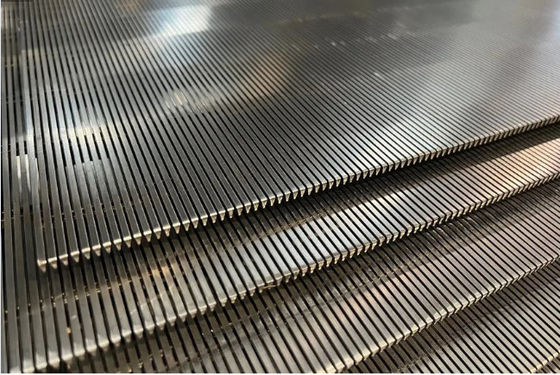

Product Details:
|
| Name: | SS304 0.2 Mm Flat Welded Wedge Wire Screen | Type: | Wedge Wire Screen |
|---|---|---|---|
| Transport Package: | Iron Pallet+safety Belts | Style: | Welded |
| Mtaerial: | SS304 | Wedge Wire: | 0.5*1.5, 1*2, 2*3, Etc |
| Size: | Square, Round, Flat Sheet, | Support Rod Size: | 1.5*2.5, 1.8*2.5, 2*3, 2*4, 3*5 |
| High Light: | ss 304 johnson vee wire screen,0.2 mm johnson vee wire screen,welded style johnson wedge wire screen |
||
V wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube, reverse rolled screen, strainer pipe, continous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainless steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screens, wide slit screens, well point screens, PPS screen, oil screen tube
Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder (above left) or they can be positioned axially on the inside of the cylinder (above right) Screen cylinders are manufactured in various diameters from 1/2" pipe size to 35" diameter.
Screen cylinders (above right) can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability. Various wedge wire and support rod combinations can be used to produce the best screen design. Rotary Screens typically use wedge wire for the screening media.
The above externally fed unit has a spiral wound wedge wire screen drum 36" OD x 120" long.
| Item | Size(mm) |
| Wedge wire | 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5 |
| Support rod | 1.5x2.5 1.8x2.5 2x3 2x4 3x5 3x6 3x10 4x7 5x6 5x8 |
| Slot | 20 micron to 3000 micron,tolerance +-5 micron |
Wedge Wire Screen Diameter
Screen diameters range from 0.750" to 38" and up in fabricated sections. Your specific tolerance and size requirements will be adhered to and will meet the required industry standards.
Carbon Retention
Catalyst Retention
Center Pipes
Collectors
De-Watering
Distributors
Filter Elements
Filter Leaf Chambers
Filter Support Cores
Flow Distribution
Intake Screens
Outlet Baskets
Reactor Screens
Resin Traps
Trap Filters
Underdrains
- Extended lifetime
- Slot during abrasive operation on the screen surface does not change
- Capability to withstand heavy loads
- High open area
- Less prone to clogging
- Perfectly smooth and flat surface
- High precision of execution Increased capacity and more precise separation
- Self-cleaning effect
- Low pressure loss
- Increased efficiency
- Permanence of exploited resources
- Lower capital cost and maintenance
1. Smooth surface ,small slot sizes, accurate efficiency.
2. Stainless steel material corrosion, rust, chemical resistance, make wedge wire screen durable and long lifespan.
Wedge wire screen mainly used for liquid, particles and powder filtering,
such as: Chemical industrial, pulp and paper industrial, mining industrial, brewing industrial, sewage instrument, oil and gas industrial, etc.
