Product Details:
|
| Name: | V Shaped Wrapped Slot Pipe Screen Filter/Johnson Wedge Wire Screens | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Wedge Wire: | Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm | Support Rod: | Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm |
| Support Profile: | Flat,triangle Wire,round Wire,trapezoid Wire | Size: | Can Be Customized |
| Keywords: | Strong Resistance Ability | ||
| High Light: | customized johnson wedge wire screens,v shaped johnson wedge wire screens,customized johnson wire screen |
||

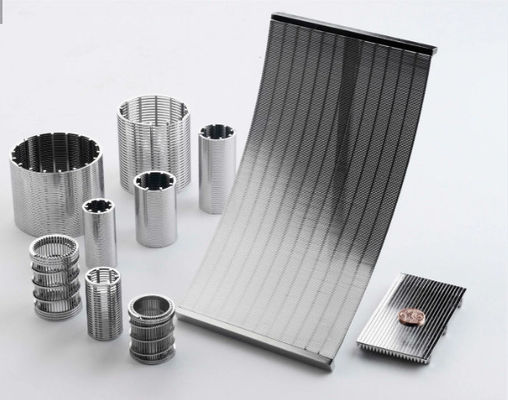

V Shaped Wrapped Slot Pipe Screen Filter/Johnson Wedge Wire Screens
Product Information
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens.

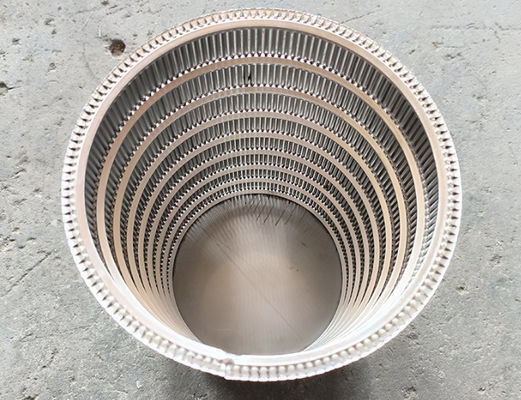

Wedge wire is made by winding a cylindrical V-shaped profile wire around a longitudinally placed support rod. The intersections of profile wires and support rods are well welded. Its smooth surface prevents clogging and provides greater structural strength. Welded wedge wire mesh is the most technologically advanced product of modern times and is used for screening, filtering, dewatering, drying and cleaning in many industries. Numerous combinations of profiled wires and support rods, as well as various openings between wires and rods, allow us to design screens to your specifications.
Parameter
| Material | stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Support profile | Flat,triangle wire,round wire,trapezoid wire |
| Size | can be customized |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
Advantage
1.long service life
2.high opening rating
3.Uniform screen seam, stable welding quality
4.good strength, stiffness and load capacity
5.Strong to be acid-proof , alkali-resisting , bear high temperature , pulling force and wear ability
Application

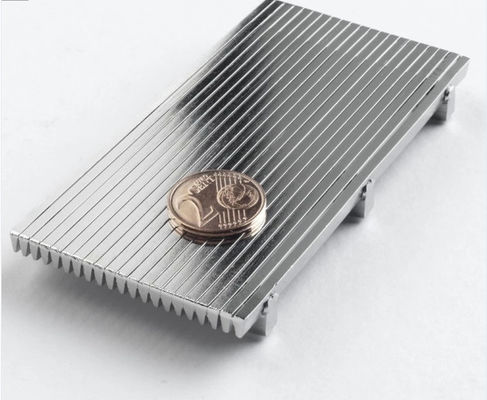

Applications for wedge wire screen panels include vibrating or static screen decking,mineral processing,surface water intake screen,fish diversion screen panels,hatchery screens,food processing,flooring for malt kiln,germination,andgrain drying to name a a few.flat wedge wire screen panels can be constructed using rectangular support rods or round support rods.Flat wedge wire screen panels can be designed to maximise the open area,strength and wear life to suit any application.
Packing
The moisture-proof paper we use for packaging is fully wrapped, completely isolated from air and oxygen, so as to ensure that the goods are intact when you receive them. We use foam on the outside to prevent the products from bumping against each other. On the outside, we use wooden cases to organize the products, and finally the product specifications and parameters will be pasted on the outside of the wooden cases.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
