Product Details:
|
| Name: | 0.25mm Sieve Cylinders Wedge Filter Screen For Petroleum | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Wedge Wire: | Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm | Support Rod: | Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm |
| Support Profile: | Flat,triangle Wire,round Wire,trapezoid Wire | Size: | Can Be Customized |
| Keywords: | Continuous Slot Opening | ||
| High Light: | 0.25mm wedge wire screens,petroleum wedge wire screens,petroleum wedge filter screen |
||

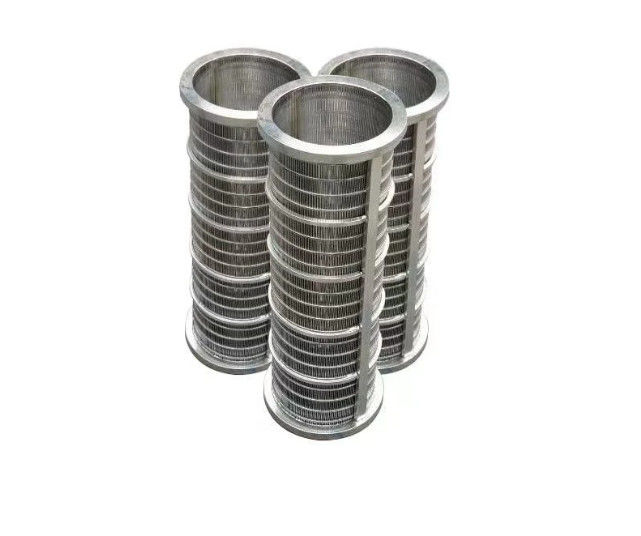

0.25mm Sieve Cylinders Wedge Filter Screen For Petroleum
Product Information

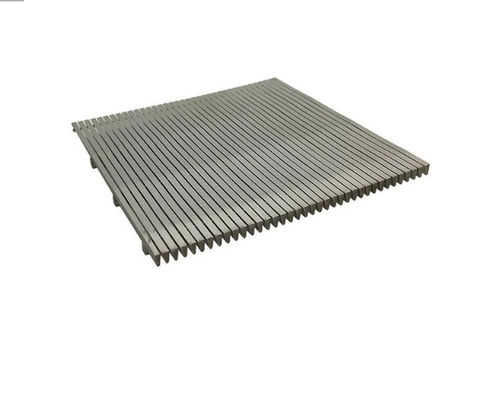

Wedge wire DSM screen, also named DSM Johnson screen ,wedge wire bend screens, sieve bend screen. Wedge wire DSM screen is consist of curved concave wedge wire screen and stainless steel frame.The wedge wire screen are manufactured with surface profiles and support profiles,we can call wedge wire and support rod, wedge wire are welded onto support rod .
Wedge wire screen panels are made using only the highest quality standard stainless steel materials. The screen's surface structure is welded at 90 degrees angle with the support profiles which widen inwardly.
Our company can custom make any Wedge Wire Screen Panel to fit any customer's specified width and length requirements. The quality of workmanship that comes with constructing the panels, superior materials used and high precision slots ensure that our panels will meet even the most demanding applications in the industry.
Parameter
| Material | stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Slot Opening | 0.02-5mm |
| Size | can be customized |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
Advantage
1. Smooth surface ,small slot sizes, accurate efficiency.
2. Stainless steel material corrosion, rust, chemical resistance, make wedge wire screen
durable and long lifespan.

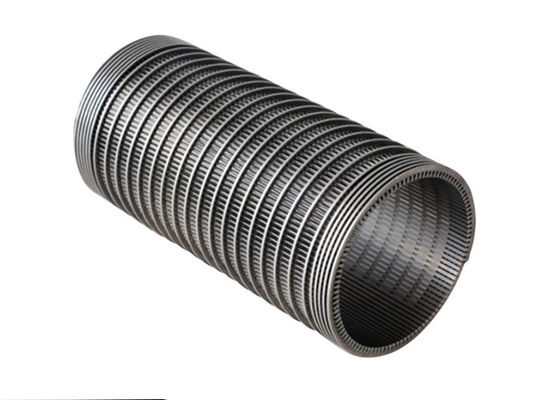

Wedge wire screen tube mainly used for liquid ,particles and powder filtering,separator, dewatering,sizing etc ,such as:Chemical industrial,pulp and paper industrial,mining industrial,brewing industrial,sewage instrument,oil and gas industrial etc .
Application
widely used in mining, coal, petroleum, metallurgy, fertilizer, grain, chemical industry, food industry, starch processing, sugar processing, wastewater management, sludge dewatering, stone and quarry industry.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
Serves
1.Fast feedback and complete solution
2.Competive price and better delivery time
3.Free samples made in 2 days
4.Complete order system
5.Excellent after sale service
Contact Person: Ms. Suzen
Tel: 15131889404
