Product Details:
|
| Name: | Stainless Steel Microns Wedge Wire Drum Screen Filter Screen Replacement | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Wedge Wire: | Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm | Support Rod: | Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm |
| Support Profile: | Flat,triangle Wire,round Wire,trapezoid Wire | Size: | Can Be Customized |
| Keywords: | Alkali-resisting | ||
| High Light: | customized stainless steel wedge wire screen,304 stainless steel wedge wire screen,alkali resisting wedge wire screens |
||
Stainless Steel Microns Wedge Wire Drum Screen Filter Screen Replacement
Product Information

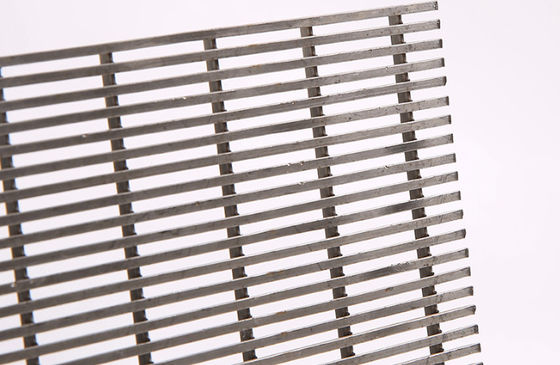

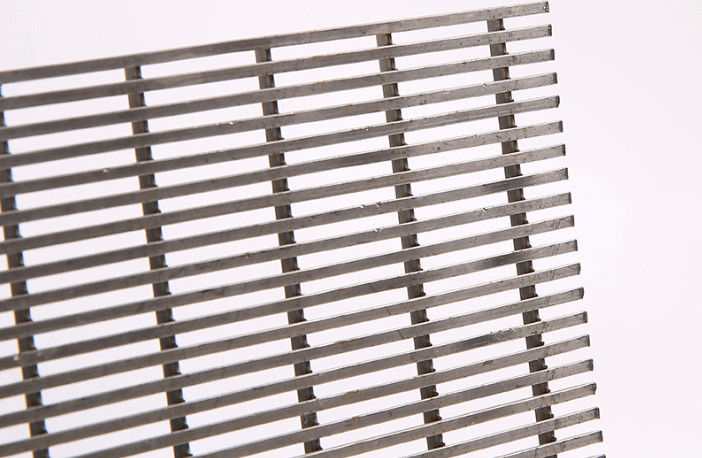

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

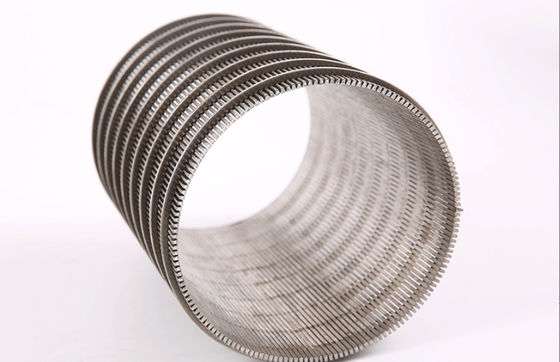

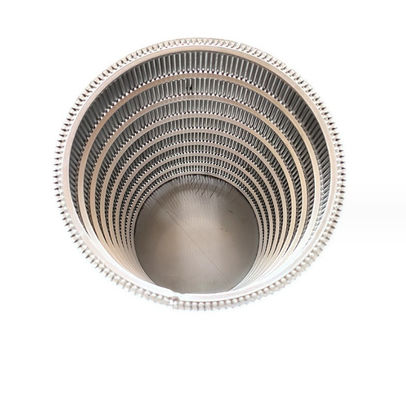

Wedge wire filter are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles. Our wedge wire filter have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one.
It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.
Parameter
| Material | stainless steel 304/316 |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Support profile | Flat,triangle wire,round wire,trapezoid wire |
| Size | can be customized |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing: |
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc |
Advantage
Application
widely used in mining, coal, petroleum, metallurgy, fertilizer, grain, chemical industry, food industry, starch processing, sugar processing, wastewater management, sludge dewatering, stone and quarry industry.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
