Product Details:
|
| Name: | Stainless Steel 316L Wedge Wire Filter Screen Coanda Screens For Water Intake | Type: | Pipe, Flat Sheet, Bend Screen |
|---|---|---|---|
| Material: | SS316L | Wedge Wire: | Can Be Customized. |
| Design: | Based On Drawing, | Hole Size: | Slot Hole 0.2 0.3 0.5 0.75mm |
| Size: | Customized | Transport Package: | Iron Pallet+safety Belts+pvc Films |
| High Light: | stainless steel 316l coanda screens,water intake coanda screens,stainless steel 316l wedge wire screens |
||

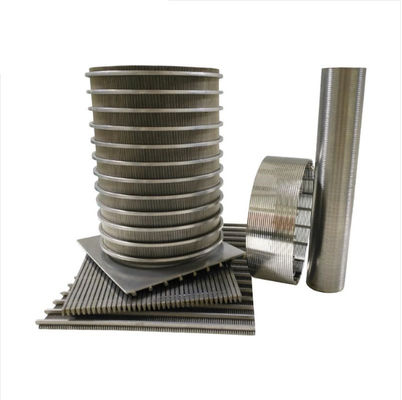

Wedge wire screen, also named Johnson screen ,wedge wire flat screens, wedge wire panels. Wedge wire screen are manufactured with surface profiles and support profiles,we can call wedge wire and support rod, wedge wire are welded onto support rod at each intersection in a 90 degree.
The wedge-shaped tube is made during the process of simultaneously winding a specially formed working line on a spiral and welding them to a load line placed along the tube. This technology allows the production of wedge screens when very high gap precision and shielding resistance are required. Thanks to the latest welding technology, we are able to obtain a wide range of distances between the load-bearing lines, with very precise and repeatable clearances, so that the screen can be produced according to the customer's specific requirements.

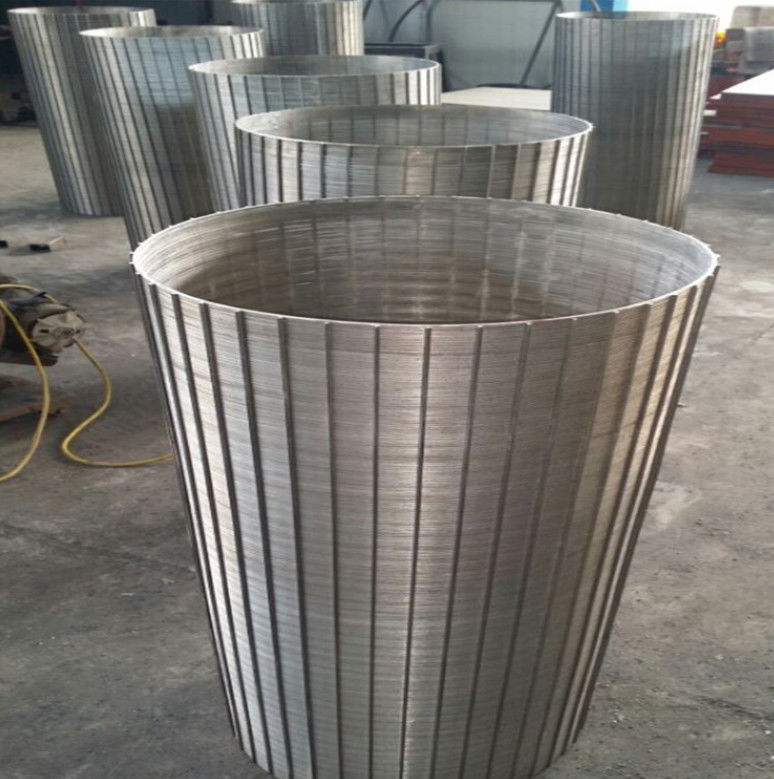

Screens also are made in various different configurations, including cylindrical, flat, specialty shapes or curved. Many different variations of wire and rod sizes/profiles can be selected to develop the exact screen of your choice.
Our screen can be welded to nipples, couplings, pipe, or flanges.
The fabricated and welded construction makes for durable quality vessel internals and media retention products. Wire mesh and perforated pipe may be less expensive initially, but wedge wire screens offer easier installation and long-term operating and cost benefits. Any process or vessel requirements can be accommodated, such as vertical or horizontal vessels.
| Item | Size(mm) |
| Wedge wire | 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5 |
| Support rod | 1.5x2.5 1.8x2.5 2x3 2x4 3x5 3x6 3x10 4x7 5x6 5x8 |
| Slot | 20 micron to 3000 micron,tolerance +-5 micron |
Wedge Wire Screen Diameter:
Screen diameters range from 0.750" to 38" and up in fabricated sections. Your specific tolerance and size requirements will be adhered to and will meet the required industry standards.
Wedge wire screen material: Stainless steel 304,316,316L etc.
Wedge wire screen mainly production process: wedge wire profiling and welding,cutting and other fitting welding,surface treatment,certification,package.
- Extended lifetime
- Slot during abrasive operation on the screen surface does not change
- Capability to withstand heavy loads
- High open area
- Less prone to clogging
- Perfectly smooth and flat surface
- High precision of execution Increased capacity and more precise separation
- Self-cleaning effect
- Low pressure loss
- Increased efficiency
- Permanence of exploited resources
- Lower capital cost and maintenance
1. Plywood case + safety belts + pvc films
2. carbon steel pallet + safety belts + pvc films
By air :2-3 days
By sea :35 days around
By express: 3-7 days
Please feel free to contact us if you have any questions.
